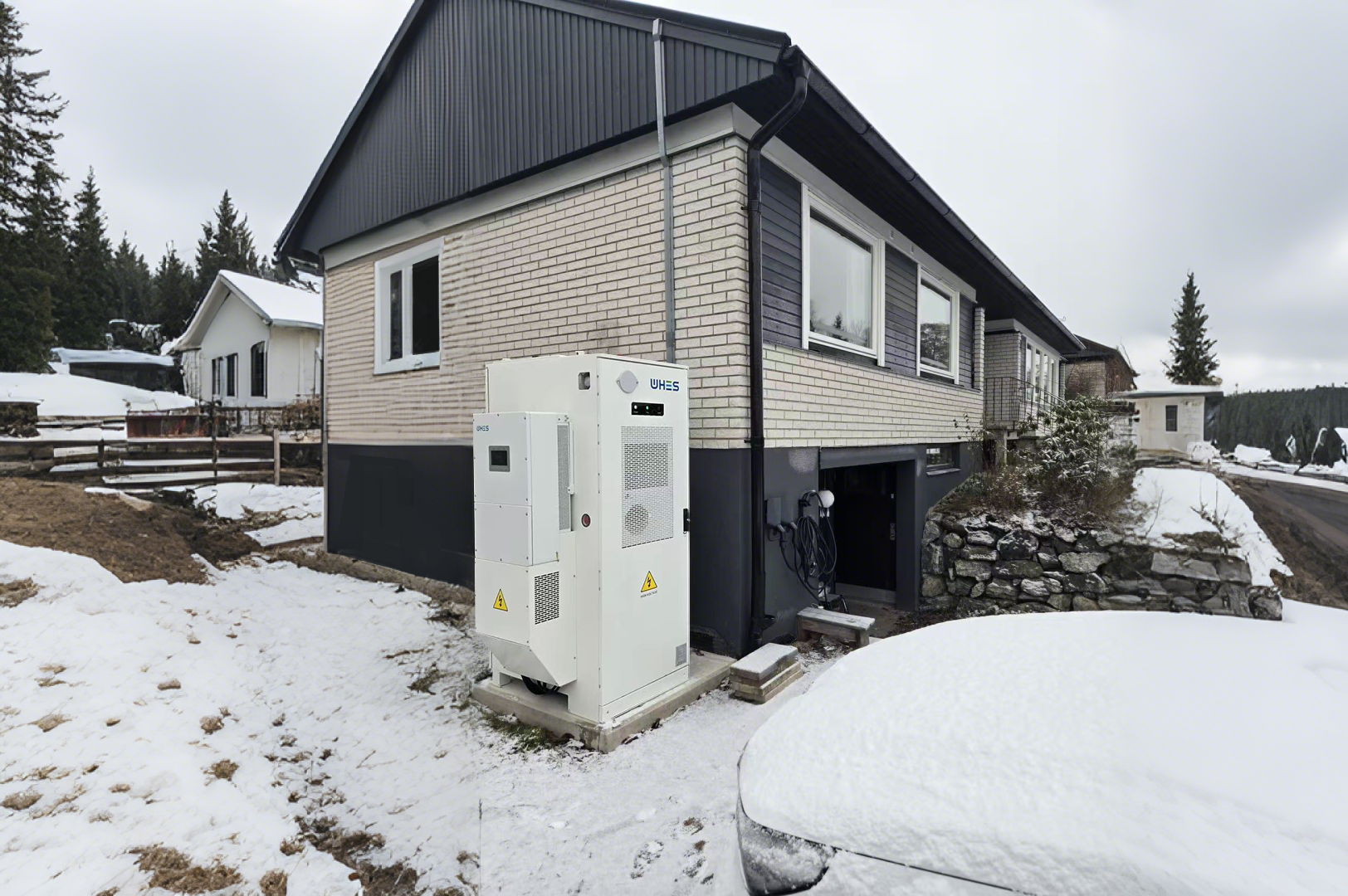

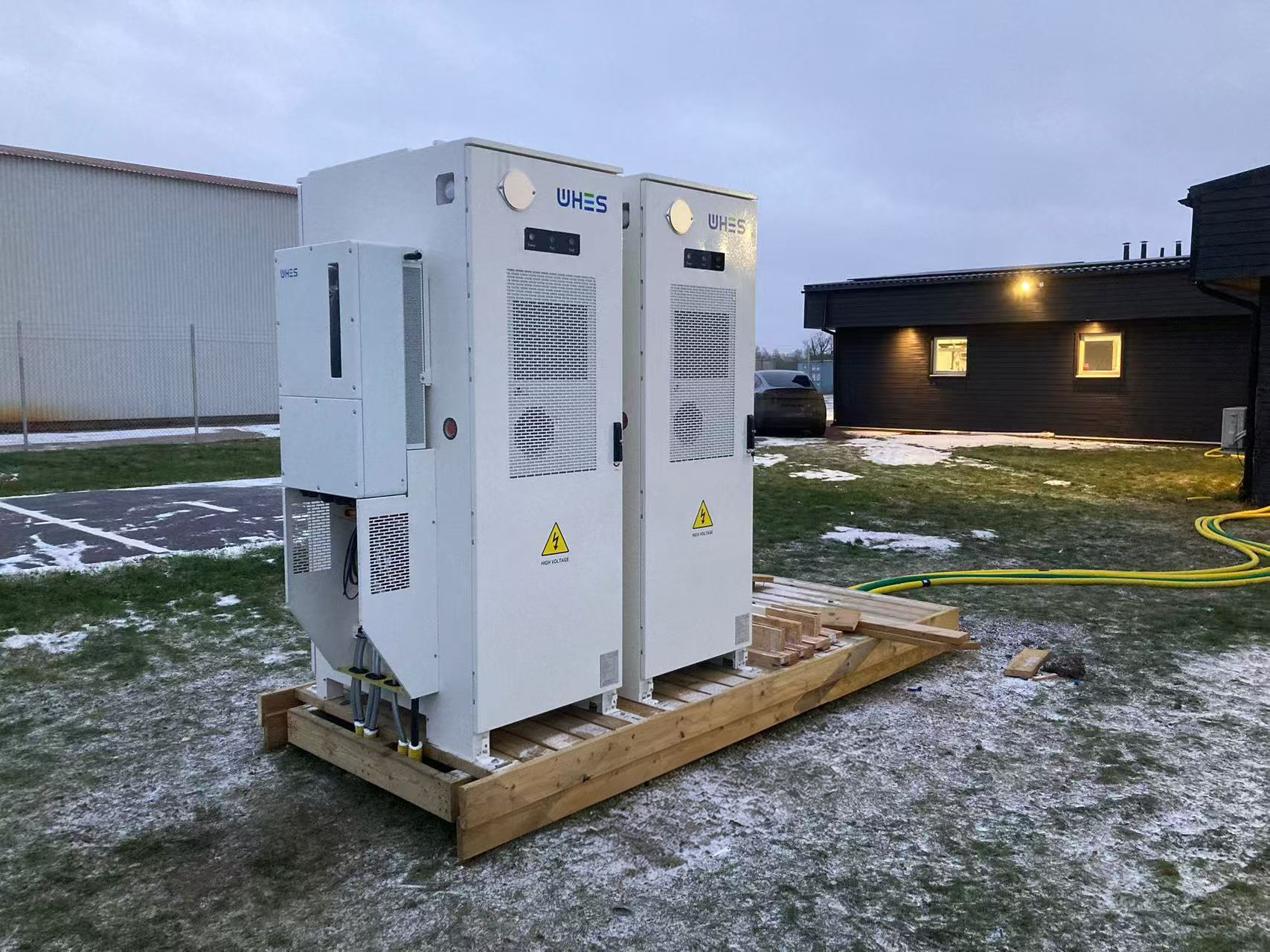

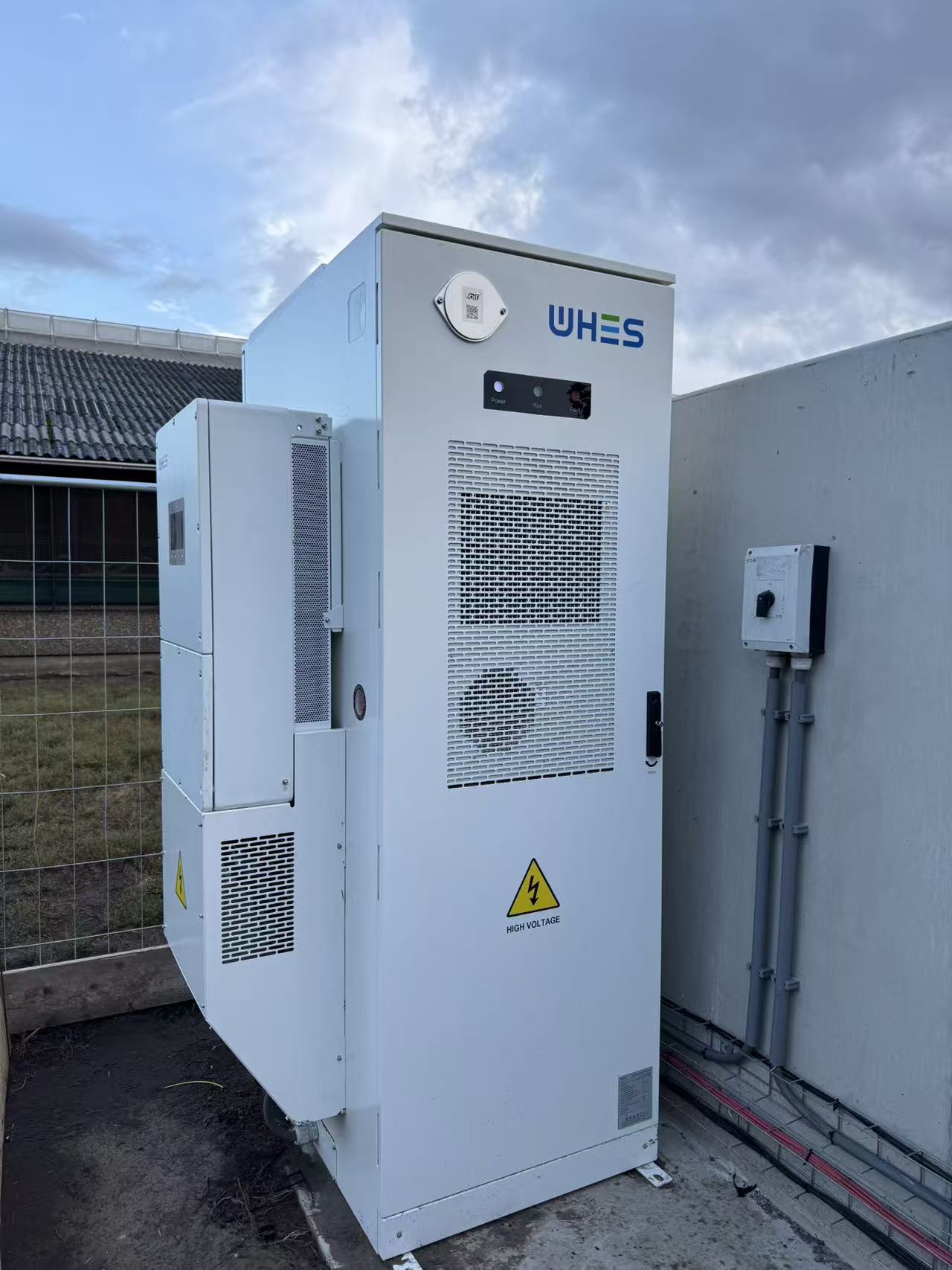

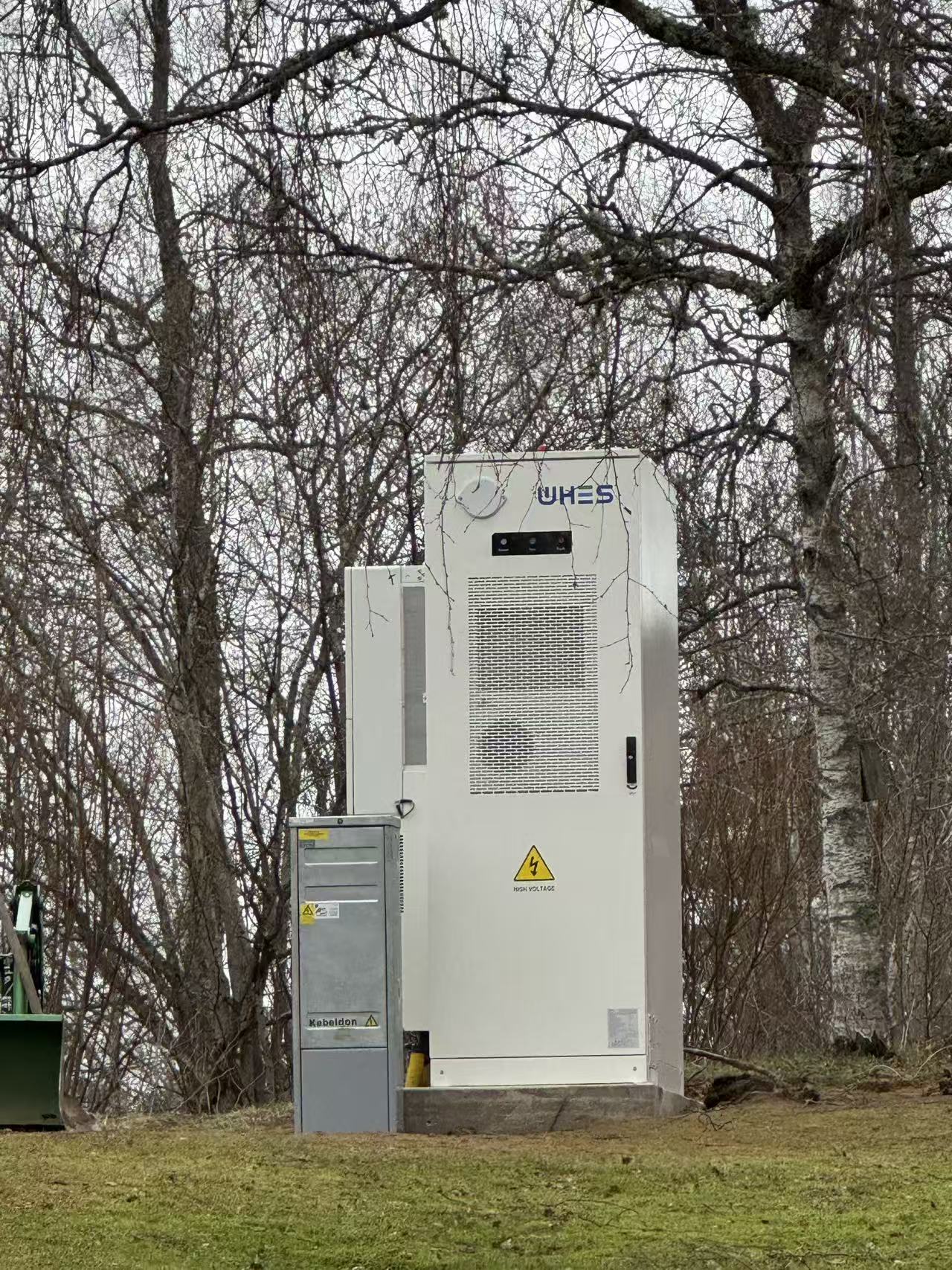

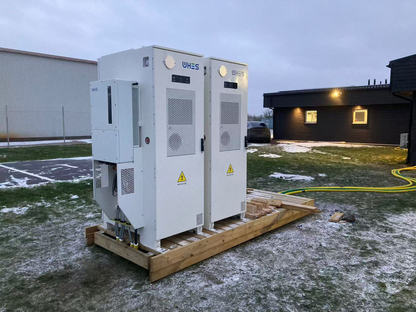

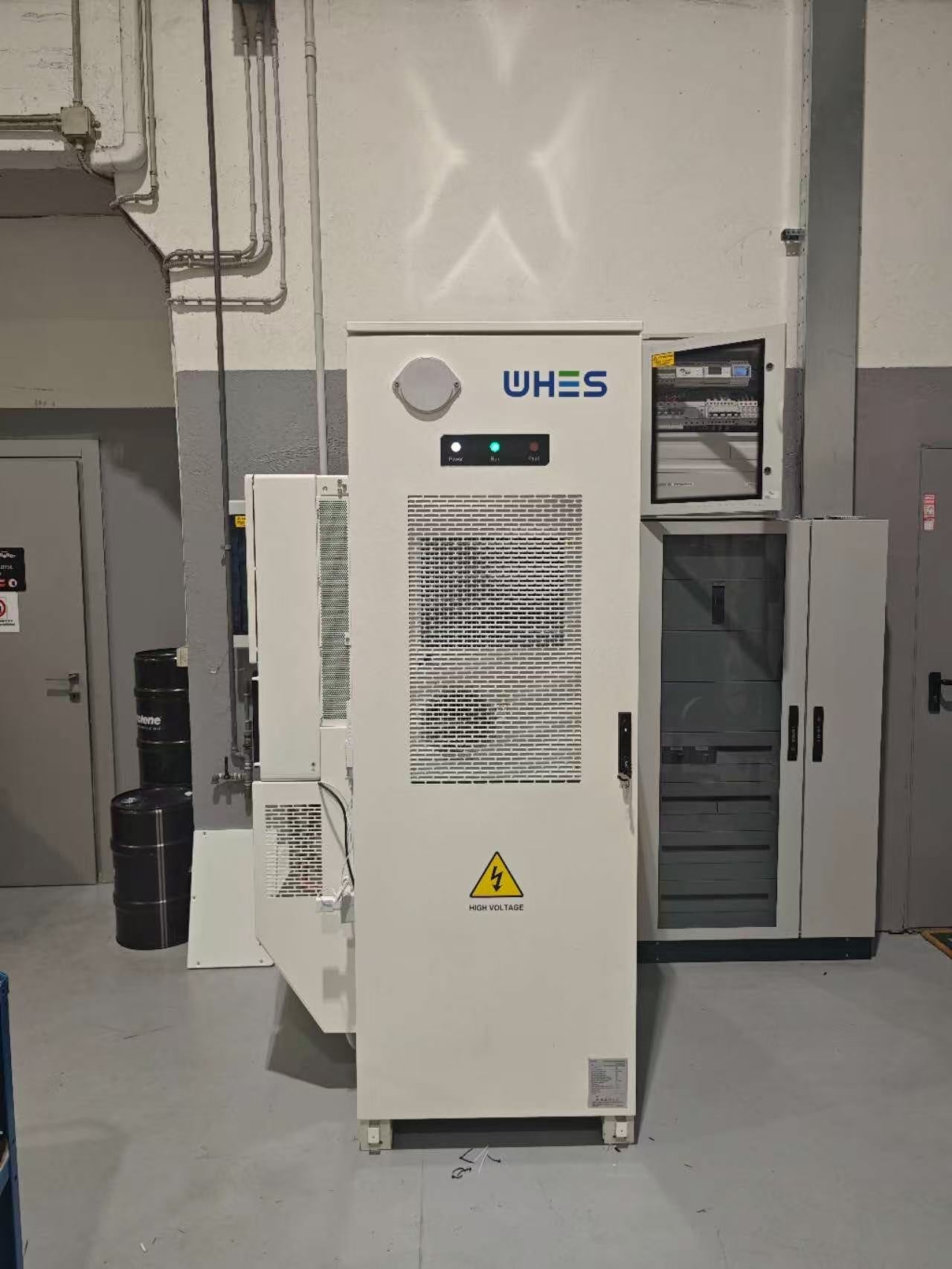

The PC-mini is a fully integrated battery energy storage system with a hybrid inverter - delivering up to 50kW 3-phase output and 100kWh of battery capacity in a single pre-wired cabinet, ready for on-grid, off-grid, and microgrid deployment across commercial, agricultural, and industrial sites.

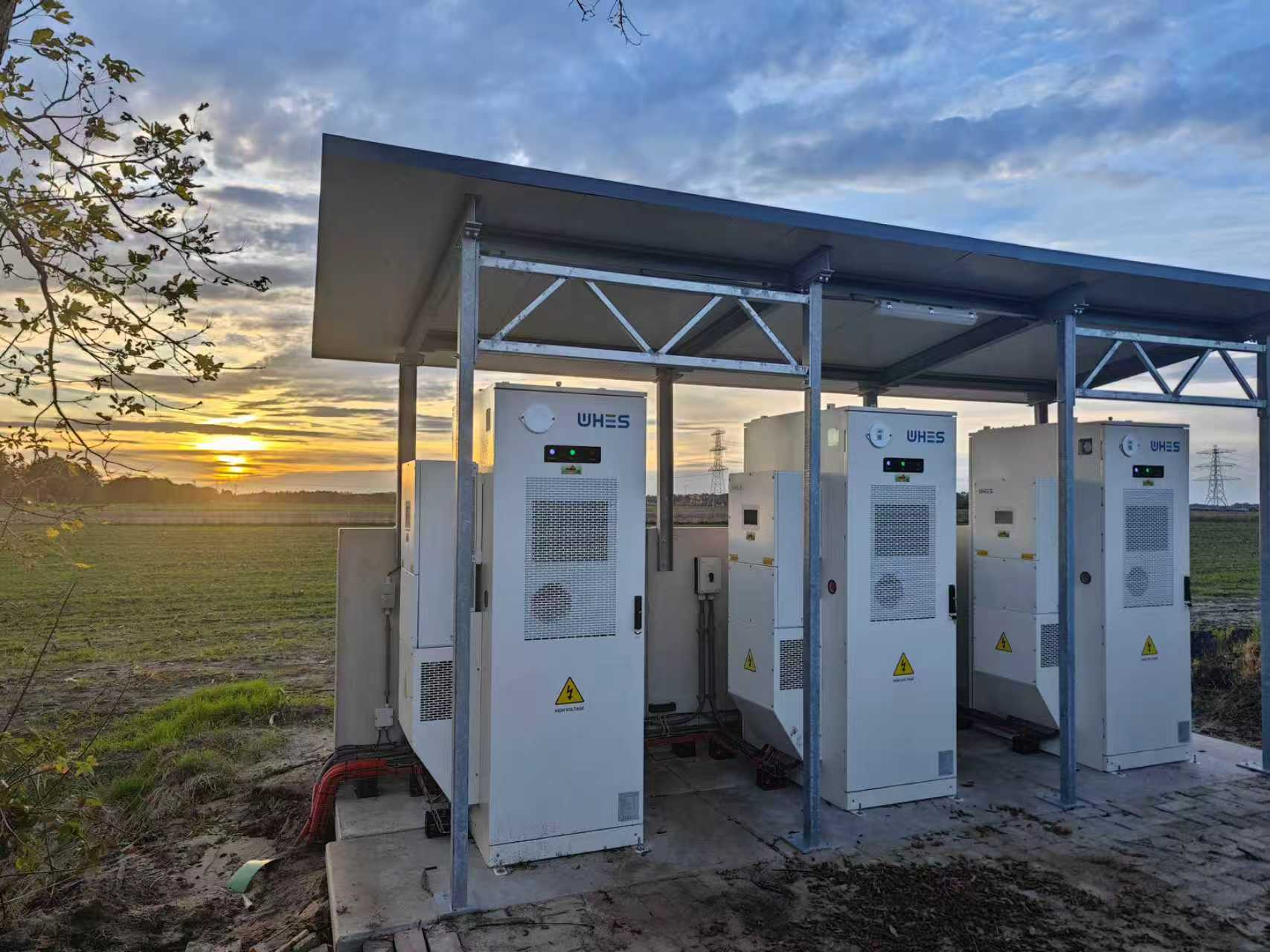

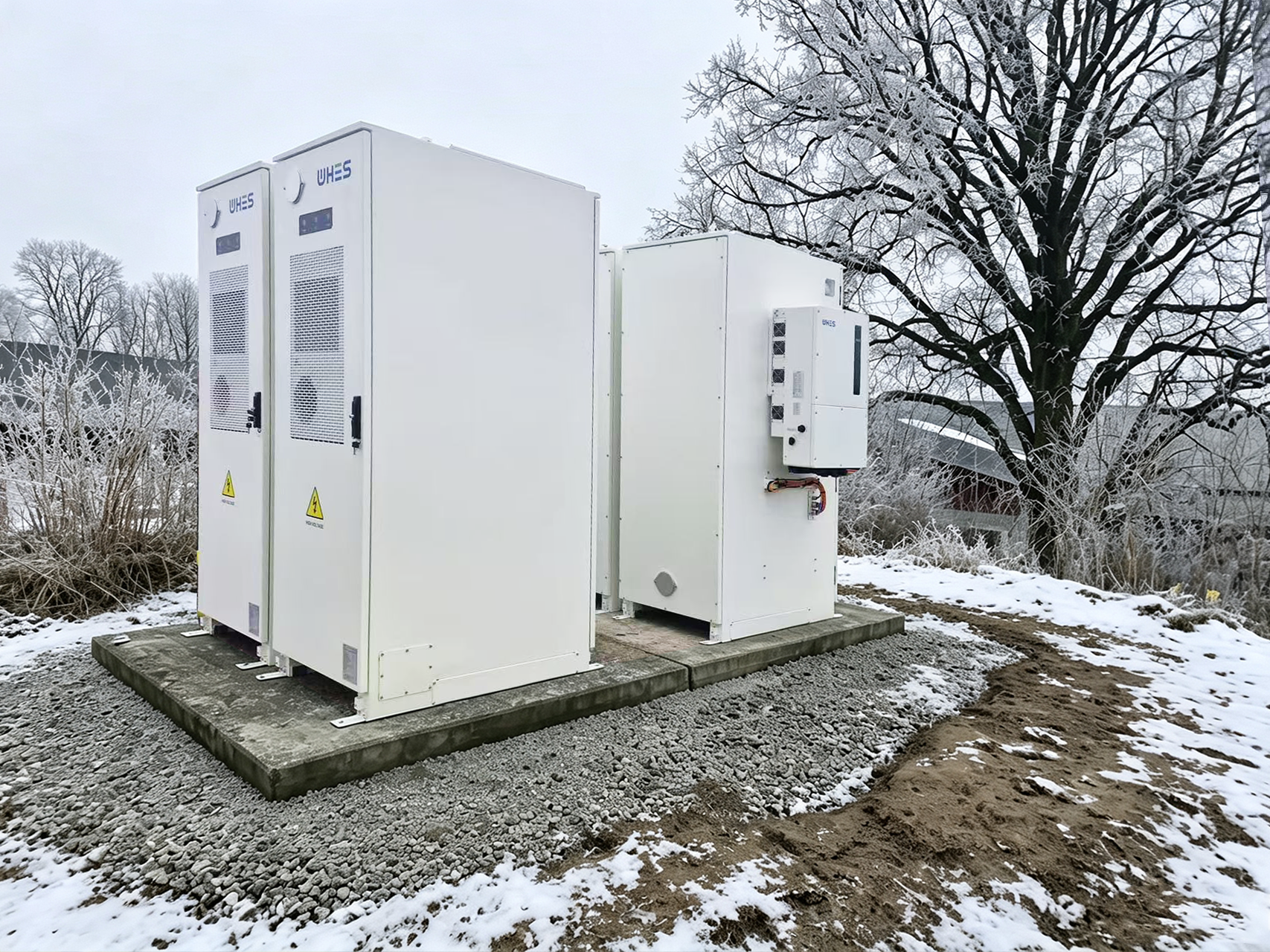

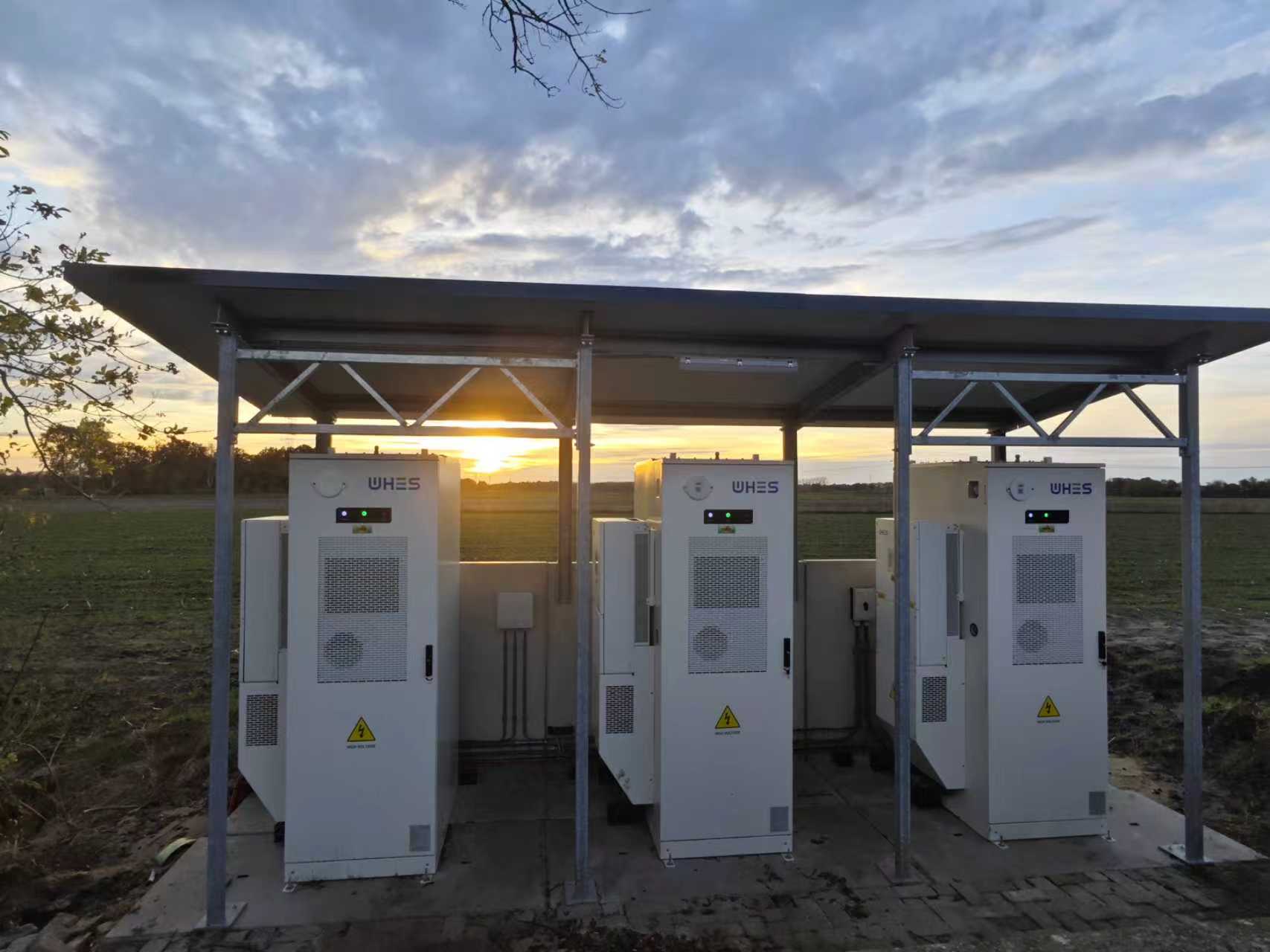

These units can be configured with a 30kW, 40kW or 50kW 3-phase hybrid inverter, and 57kWh, 86kWh or 100kWh of battery capacity. Up to 6 inverters in parallel (for paralleled off-grid output) and up to 3 battery expansion cabinets per inverter (300kWh per inverter).

Features:

• 4 MPPTs and 8 Strings (40 & 50kW) | 3 MPPT and 6 Strings (30kW)
• < <10ms EPS switching between on‑grid and off‑grid modes
• Supports 100% unbalanced output, half‑wave and surge loads.
• Max. 2 Times Photovoltaic Oversizing
• Max. 20A PV input current per string
• IP55 (Battery cabinet) / IP66 (Inverter)
• Four‑level active and passive fire protection

These cabinets are made to orders and have a longer lead time. Please enquire for lead times on your required variation.
