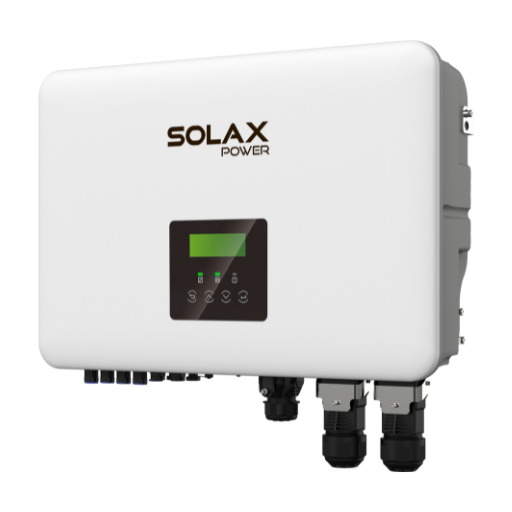

Solax X1-VAST Single-Phase 5/6/8/10kW Hybrid Inverter - Battery ready

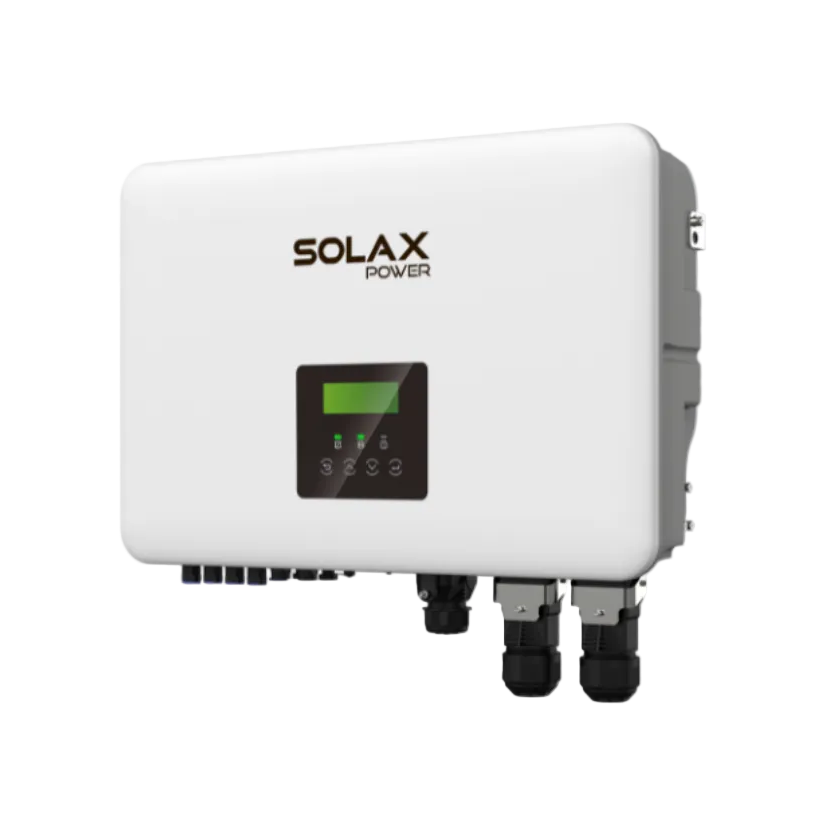

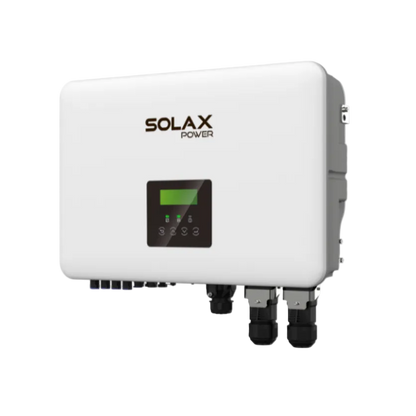

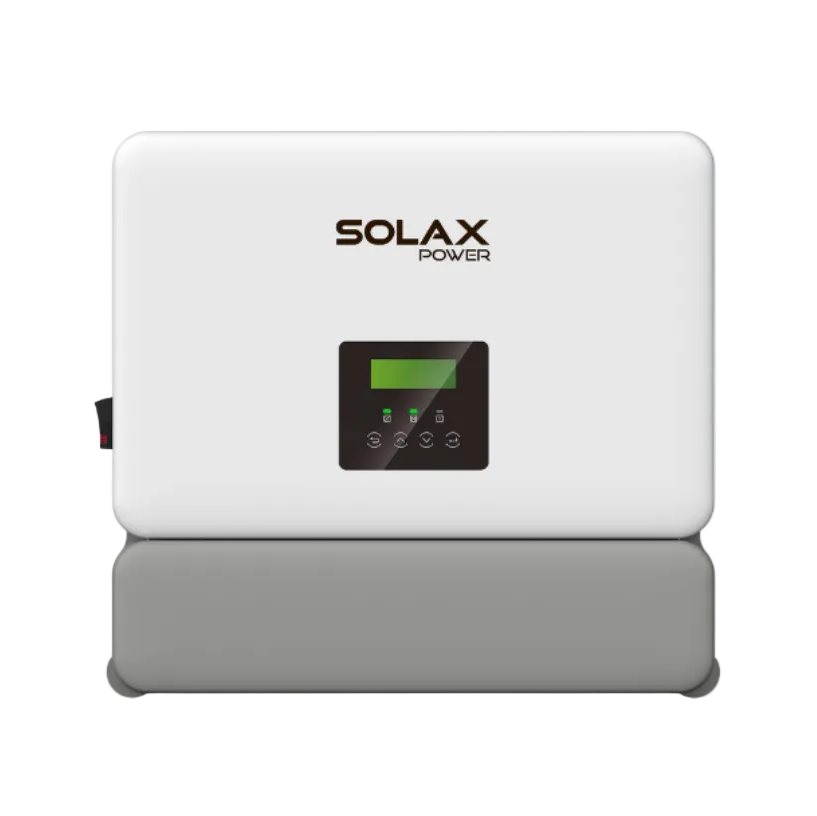

SolaX X1-VAST Single-Phase Hybrid Inverter (AU/NZ) – 5kW / 6kW / 8kW / 10kW

The SolaX X1-VAST is a high-performance single-phase residential hybrid inverter designed for modern solar + battery systems. With high PV capacity, fast backup switchover, and flexible battery expansion, it’s a strong option for homes wanting greater energy independence and resilience.

Highlights

• Hybrid-ready: Supports high-voltage lithium batteries with dual battery ports and flexible expansion options.
• High PV capability: Supports up to 200% PV oversizing and up to 20A DC input per MPPT (model dependent).
• Fast backup (EPS): UPS-level switchover < 10 ms, with up to 200% EPS output for 10 seconds (with battery connected).
• Safety built-in: Type II SPD on both DC and AC sides; optional AFCI (where supported).
• Outdoor-ready: IP66 enclosure and wide operating temperature range.

Available Models

Note: PV sizing and MPPT configuration vary by model. Always confirm final design with your installer and local grid requirements.

Key Electrical Specifications (AU/NZ Datasheet)

PV (Solar) Input

• Max PV input voltage: 600 V
• Nominal PV input voltage: 360 V
• MPPT voltage range: 40–560 V
• Start-up voltage: 50 V
• Max input current per MPPT: 20 A (each tracker)
• Max short-circuit current per MPPT: 25 A (each tracker)

Battery (High Voltage)

• Battery type: Lithium
• Battery voltage range: 80–480 V
• Max charge / discharge current: up to 50 A (25 A × 2 ports)

Battery port notes: If each port connects to a separate battery, it is 25 A per port. If one port connects to a single battery, it is 30 A. If both ports connect to a single battery using a 2-in-1 splitter (sold separately), it is 50 A.

EPS (Backup / Off-Grid Output) – with Battery

• Rated EPS voltage / frequency: 230 V, 50 Hz / 60 Hz
• Peak EPS output: up to 2× rated power for 10 seconds
• Switchover time: < 10 ms

Efficiency & Power Quality

• Max efficiency: 97.6%
• Power factor range: ~1 (0.8 lagging to 0.8 leading)
• THDi (rated power): < 2%

Build, Environment & Connectivity

• Ingress protection: IP66
• Operating temperature: -35°C to 60°C (derating above +45°C)
• Max operating altitude: 3000 m
• Relative humidity: 4–100% RH (condensing)
• Dimensions (W × H × D): 590 × 400 × 180 mm
• Net weight: 28 ± 2 kg
• Cooling: Natural cooling
• Interfaces: CT/Meter (optional), External control RS485, Dongle interface, DRM
• Topology: Transformerless

Protections & Compliance

• Surge protection: Type II SPD (DC) / Type II SPD (AC)
• Core protections: DC isolation, reverse polarity, residual current detection, over-temperature
• Anti-islanding: Frequency shift
• Approvals (includes): AS/NZS 4777 and relevant IEC/EN standards (see datasheet for full list)
• Optional: AFCI (where supported)

Important Notes

• This inverter is designed for AU/NZ compliance as per the referenced datasheet.
• PV input voltage above the specified maximum may damage the inverter. Ensure system design remains within limits.
• Some smart features listed by the manufacturer may be future upgrades depending on firmware/region.
