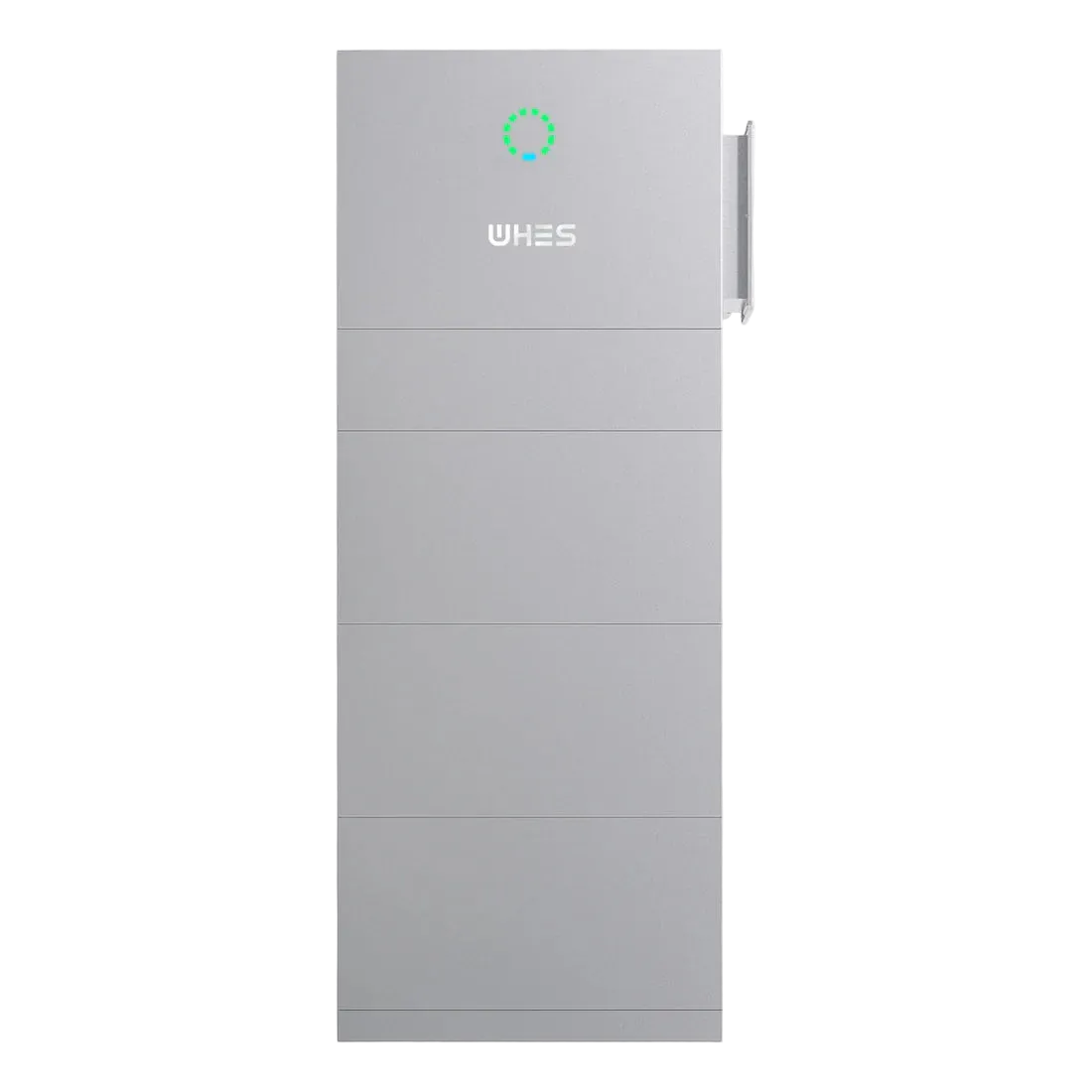

WHES PowerPod Agave-TH Ultra 13kW Inverter & 20kWh Battery system (3-Phase)
WHES PowerPod Agave-TH Ultra 13kW Inverter & 20kWh Battery system (3-Phase)
Trade Supply | NZ Stock | Technical Support
Regular price
$18,500.00 NZD
Regular price
Sale price
$18,500.00 NZD
Unit price
/
per
Couldn't load pickup availability
Please email us for trade pricing: sales@wholesale-solar.co.nz
Overview
WHES PowerPod AGAVE-SH Ultra (13 kW + 19.9 kWh) is an all-in-one home energy storage system that combines a high-efficiency single-phase inverter with modular LiFePO4 batteries. Designed for homes needing strong output and scalable storage, it delivers reliable backup power, solar shifting, and cold-climate readiness.
Key Features
- Integrated Design: Inverter and batteries in one streamlined system.
- Output: 13,000 W continuous at 230 V single-phase.
- Storage: 4 × 4.99 kWh modules included (≈20 kWh); expandable to 4 modules (≈19.9 kWh).
- UPS-Grade Backup: <10 ms switchover during outages.
- Fast Charge/Discharge: 50 A current capacity.
- Optional Heating: Battery heaters enable operation down to −20 °C.
- Certified Safety: Multi-layer protection incl. BMS, AFCI, UL9540A, IEC, and AS/NZS standards.
- Quiet: ≤25 dB—suitable for indoor installs.
Technical Specifications
| PV Input | Max 20,000 W; 600 V; MPPT range 50-560 V; Max 32 A (2 × 16 A) |
|---|---|
| Battery | LiFePO4; 4.99 kWh per module; 4 included; expandable to 4; 80-500 V; 50 A charge/discharge |
| AC Output | 13,000 W / 17,900 VA; 3/N/PE 230/400V; 20.8/26A; 50Hz |
| EPS / Backup | 13,000 W; Surge: 1.23× rated; Transfer time <10 ms |
| Efficiency | Inverter up to 98 % |
| Dimensions / Weight | Inverter: 600 × 750 × 380 mm (~33 kg); Battery: 600 × 570 × 380 mm (~57 kg each) |
| Safety | DC isolation, surge protection, AFCI, integrated BMS |
| Certifications | UN 38.3, IEC 61000, IEC 62619, IEC 63056, IEC 62109, IEC 62040, EN 50549-1/-10, C10/11, EIFS 2018:2, VDE-AR-N 4105, RfG:2015, NC RfG:2018, PTPiREE:2021, AS/NZS 4777.2, G98/G99, CEI 0-21 |
Applications
- Store solar energy for evening and peak use
- Seamless backup power for essential loads
- Expandable home energy independence
What’s Included
- 13 kW PowerPod T1 Ultra inverter module
- 4 × LiFePO4 battery modules (≈20 kWh), expandable to 6 (≈30 kWh)
- Integrated Battery Management System (BMS)
- Installation and safety manuals
Installer Notes (NZ / AU)
- Separate essential vs non-essential circuits for backup.
- Ensure structural support for heavy stacked modules.
- Commission with BMS setup, SOC calibration, and EPS test.
- Comply with AS/NZS standards and DNSP requirements.
