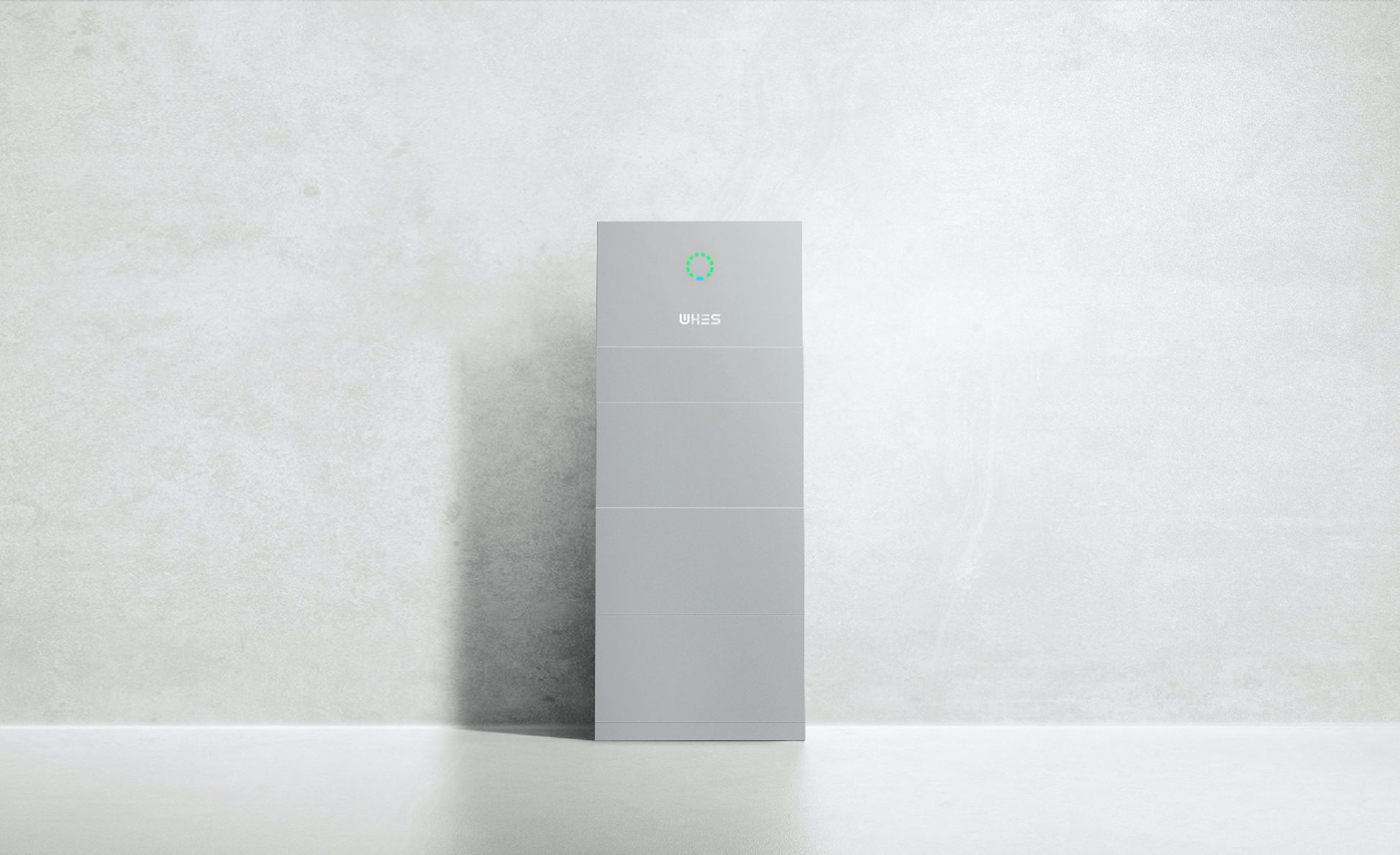

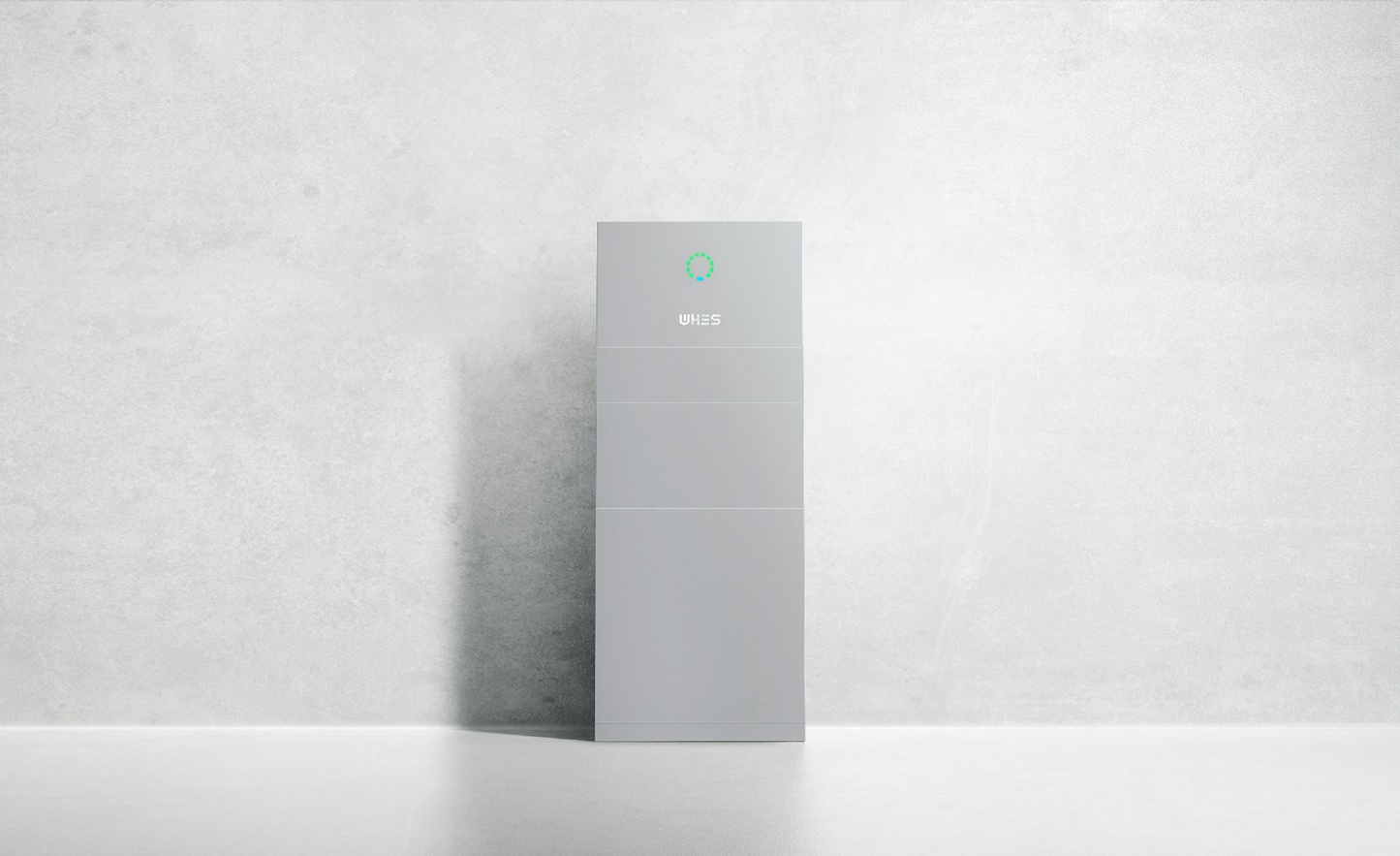

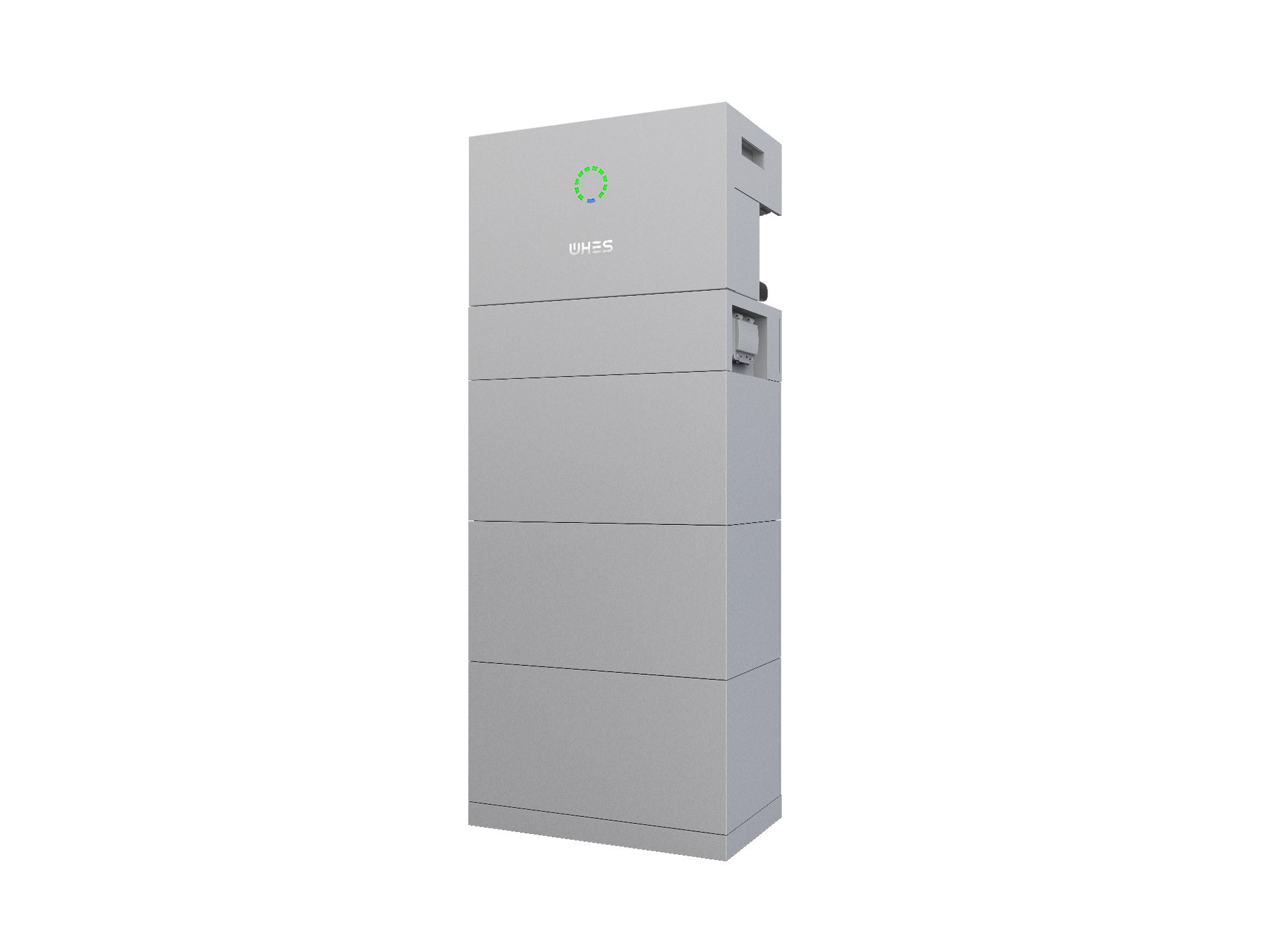

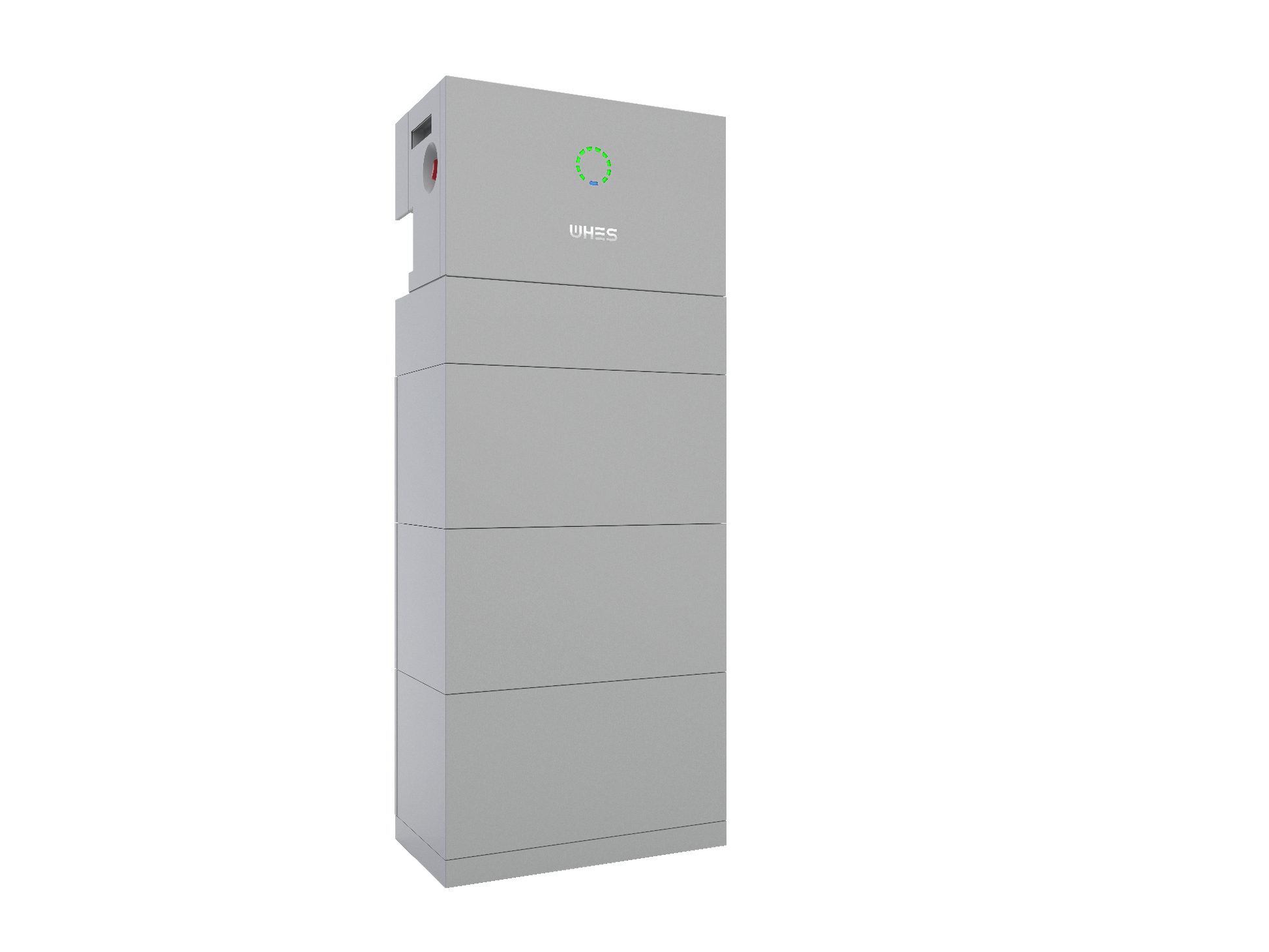

eCactus PowerPod Agave-SH Ultra 5kW Inverter & 10kWh Battery system
eCactus PowerPod Agave-SH Ultra 5kW Inverter & 10kWh Battery system
Regular price
$8,000.00 NZD
Regular price
Sale price
$8,000.00 NZD
Unit price
/
per
Please email us for trade pricing: sales@wholesale-solar.co.nz
Couldn't load pickup availability
Overview
eCactus PowerPod AGAVE-SH Ultra (5 kW + 10.24-19.9 kWh) is an all-in-one home energy storage system combining a high-efficiency single-phase inverter with modular LiFePO4 battery units. Ideal for smaller residential solar installations, backup power, or hybrid edge-of-grid use. Designed for safety, reliability, quiet operation, and future scalability.
Key Features
- All-in-One System: Integrated single-phase inverter + battery, reducing installation time by up to ~75%.
- Continuous Output: 5,000 W power at 230 V single phase.
- Expandable Storage: 1 battery module of ~4.99 kWh included; system scalable to 4 modules (≈ 19.9 kWh).
- Fast Charge/Discharge: Up to 50 A current for quick response during power demands.
- UPS-Level Backup: <10 ms switchover time keeps critical loads running during outages.
- Cold-Climate Option: Optional battery heating module enables operation down to −20 °C.
- Certified Safety: Four-layer protection (built-in BMS, DC isolation, surge protection, AFCI), UL9540A compliance and relevant IEC/AS/NZS certifications.
- Quiet Operation: ≤25 dB noise level—suitable for indoor utility cupboards/garages.
Technical Specifications (5 kW Model)
| PV Input (DC) | Max PV power: 10,000 W; Max voltage: 600 V; MPPT Voltage Range: 90-560 V; Max Current: 12 A × 2 |
|---|---|
| Battery | LiFePO4; Module capacity: ~4.99 kWh; Included: 1 module; Expandable up to 4 (≈ 19.9 kWh); Voltage range: 42-56 V; Max charge/discharge current: 50 A |
| AC Output (Inverter) | Rated output: 5,000 W; Apparent output: ~5,000 VA; Output voltage: 230 V; Output current: ~21.8 A; Frequency: 50/60 Hz |
| EPS / Backup Output | Rated: 5,000 W; Surge: 2× rated power; Transfer time: <10 ms |
| Efficiency | Max inverter efficiency: ~97.6 %; PV→Battery efficiency: ~97.3 % |
| Dimensions & Weight | Inverter module: 600 × 750 × 380 mm (~27.4 kg); Battery module: 600 × 570 × 380 mm (~57 kg per module) |
| Protection & Safety | DC isolation, surge protection, AFCI support, integrated BMS |
| Certifications | IEC/EN-62109, UN38.3, UL9540A, IEC-62619, CE, EMC, CAN/RESI, AS/NZS standards |
Applications
- Residential Solar + Storage: store daytime PV for evening and peak usage
- Backup Power: seamless UPS backup for essential loads during power outages
- Scalable Edge-Grid / Off-Grid: begin with 1 module and expand as needed up to ~19.9 kWh
What’s Included
- PowerPod AGAVE-SH Ultra inverter module (5 kW)
- One LiFePO4 battery module (~4.99 kWh); expandable to 4 modules
- Integrated Battery Management System (BMS)
- Installation manual & safety documentation
Installer Notes (NZ / AU)
- Check circuit load splits for essential vs non-essential loads to prioritise in backup mode.
- Mounting clearances & support: battery modules are heavy—ensure adequate wall/floor supports per manufacturer specs.
- Commissioning steps include BMS setup, SOC calibration, EPS test (transfer time <10 ms).
- Ensure compliance with relevant AS/NZS electrical standards and local network (DNSP) requirements.
