Product Description
High-capacity energy storage built for reliability and scalability.

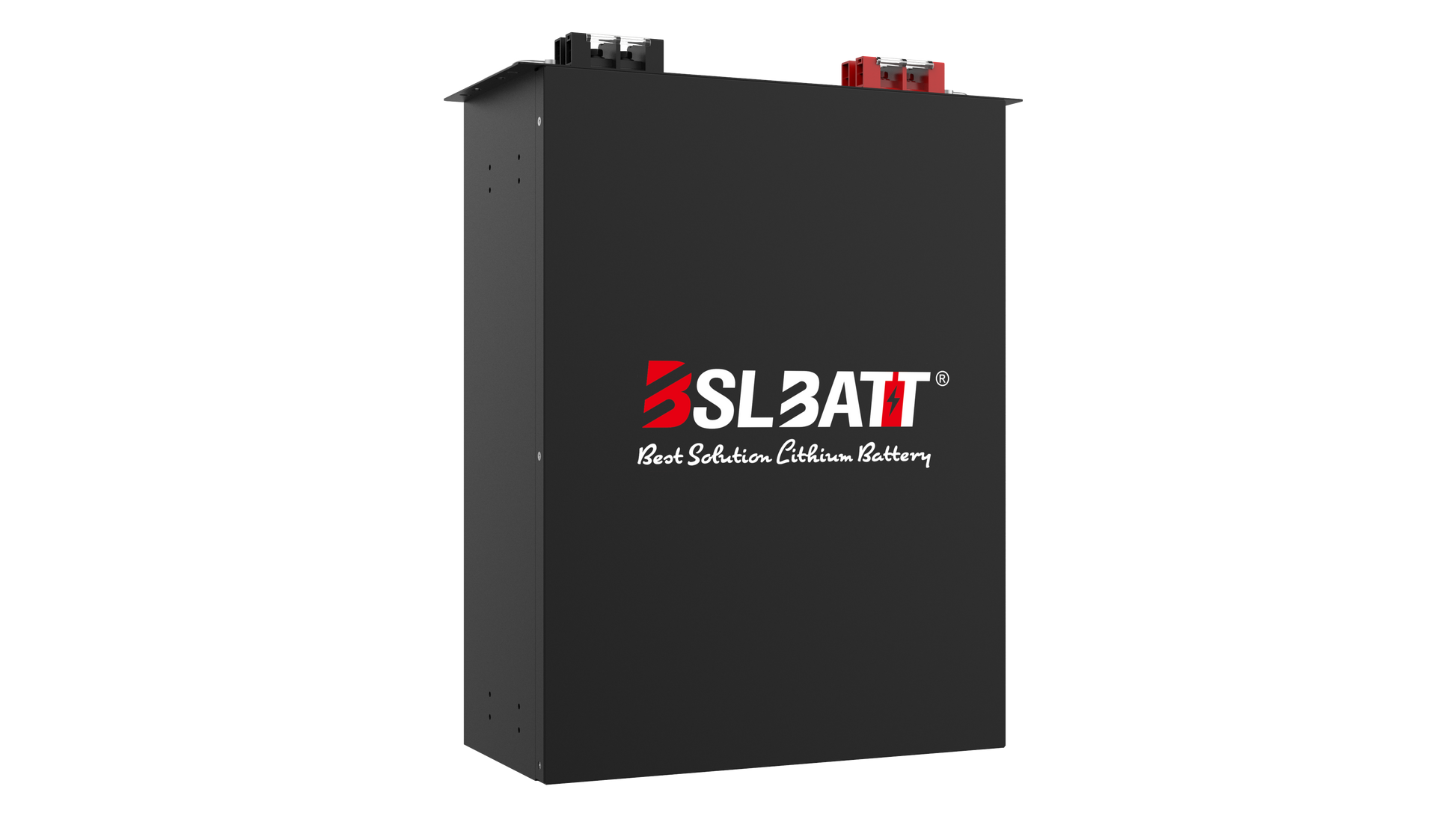

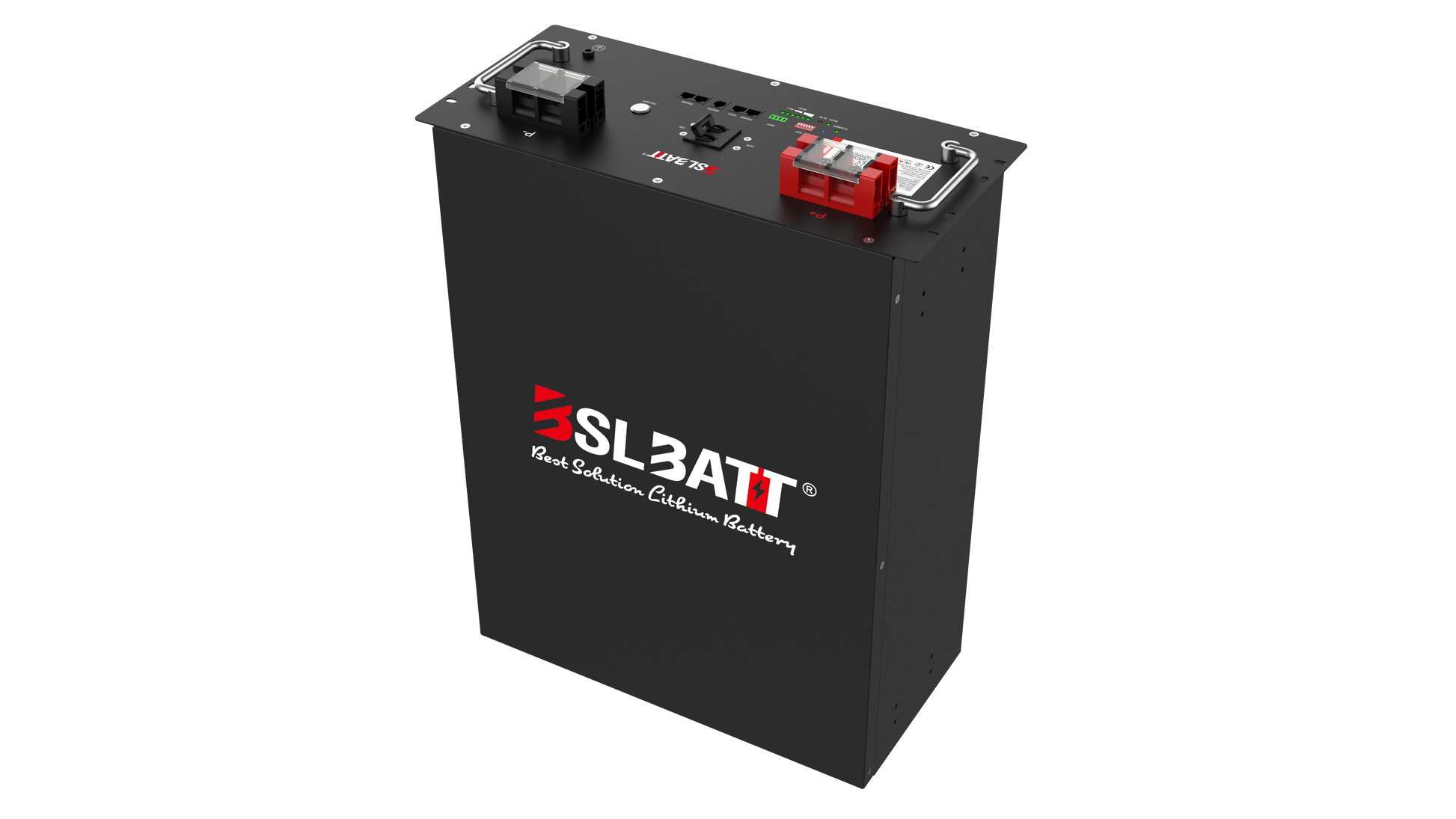

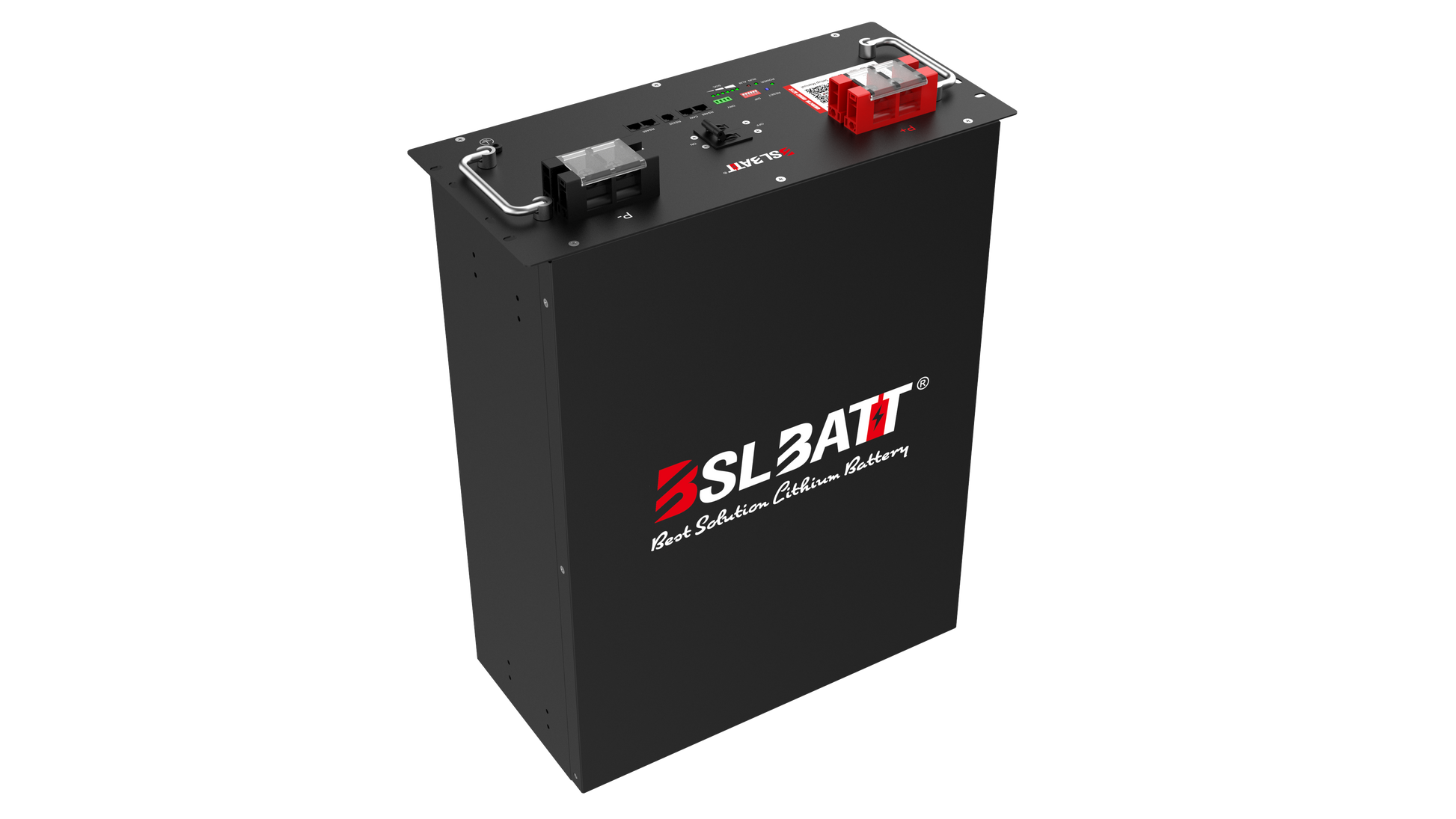

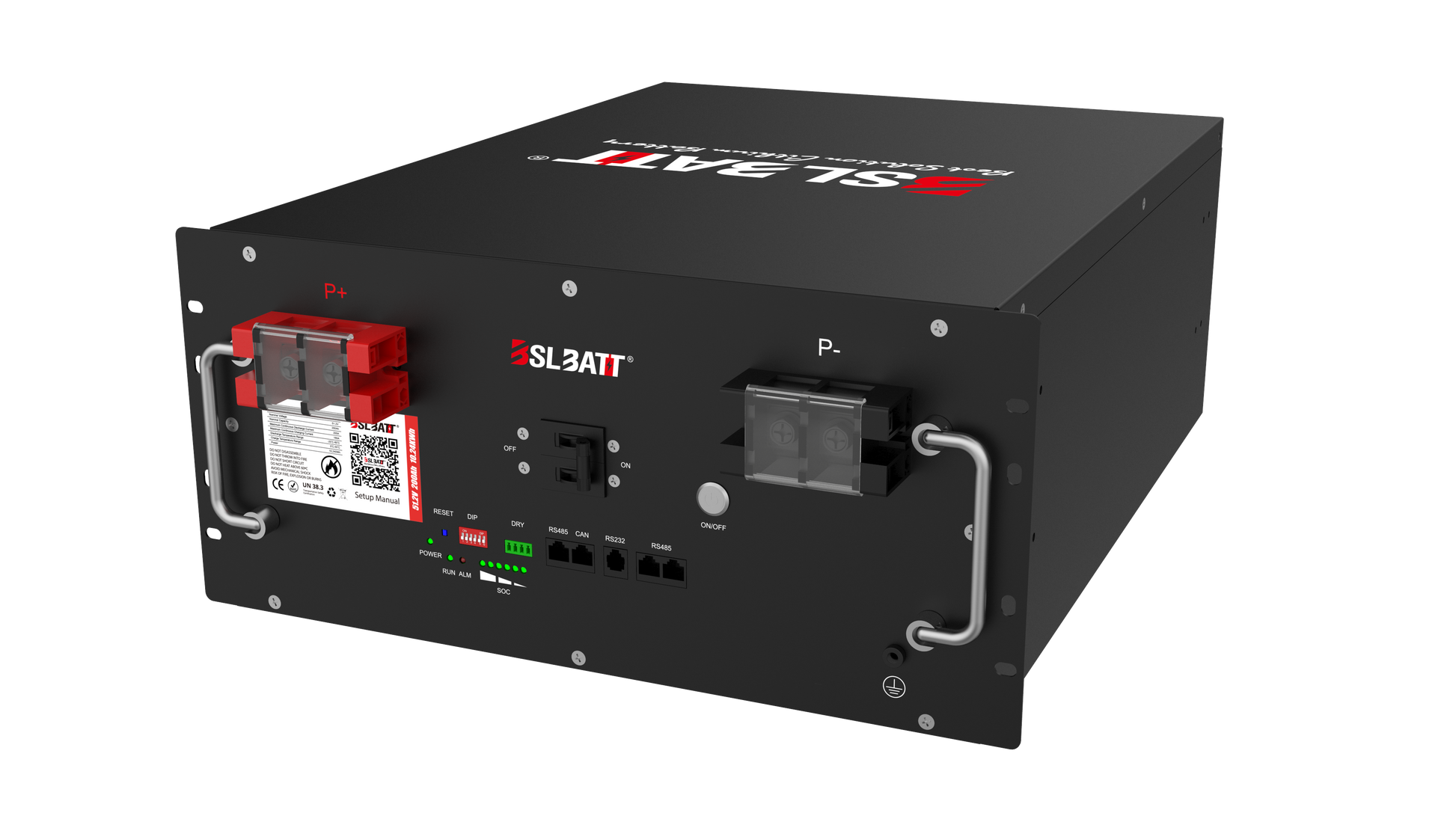

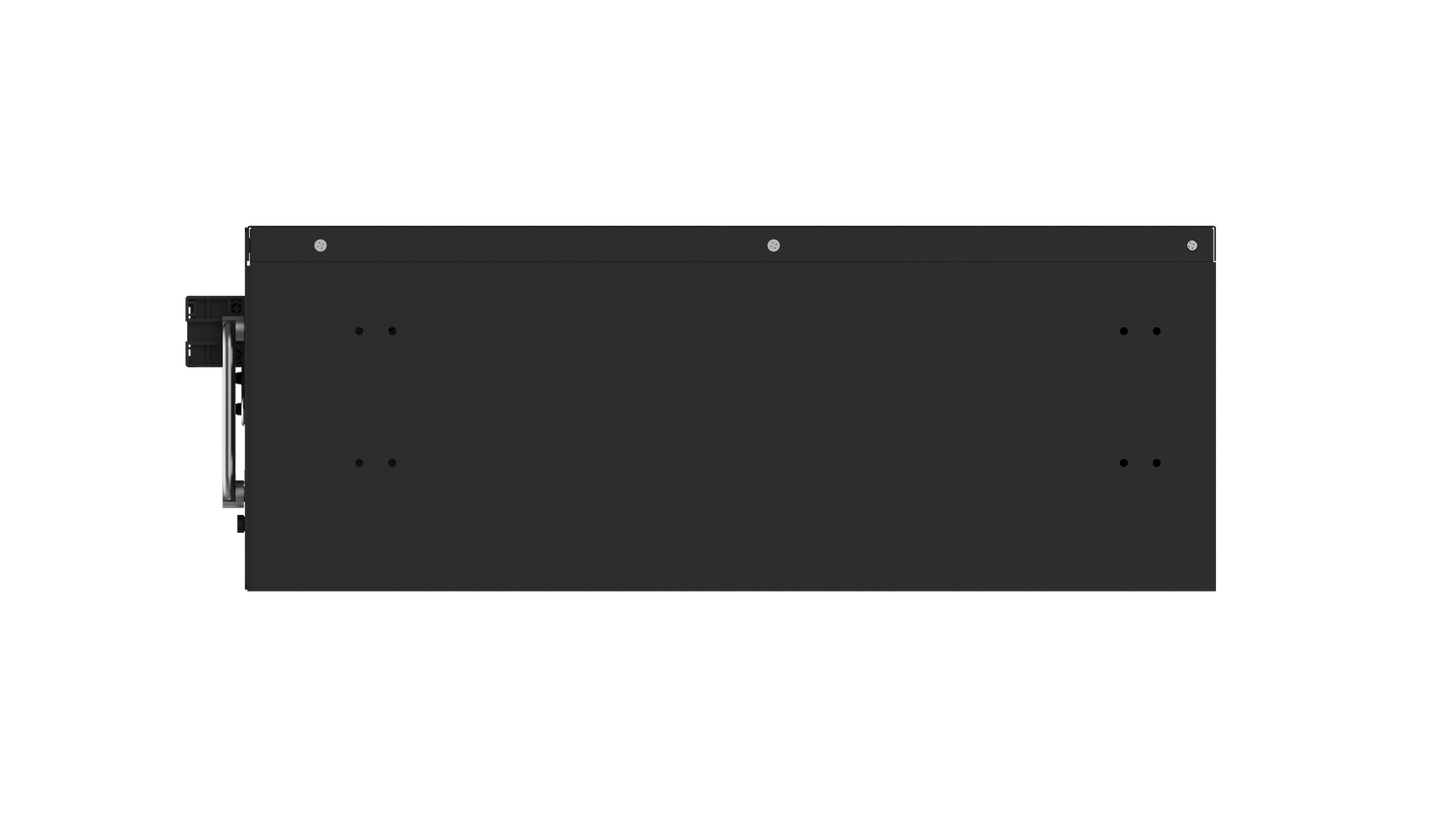

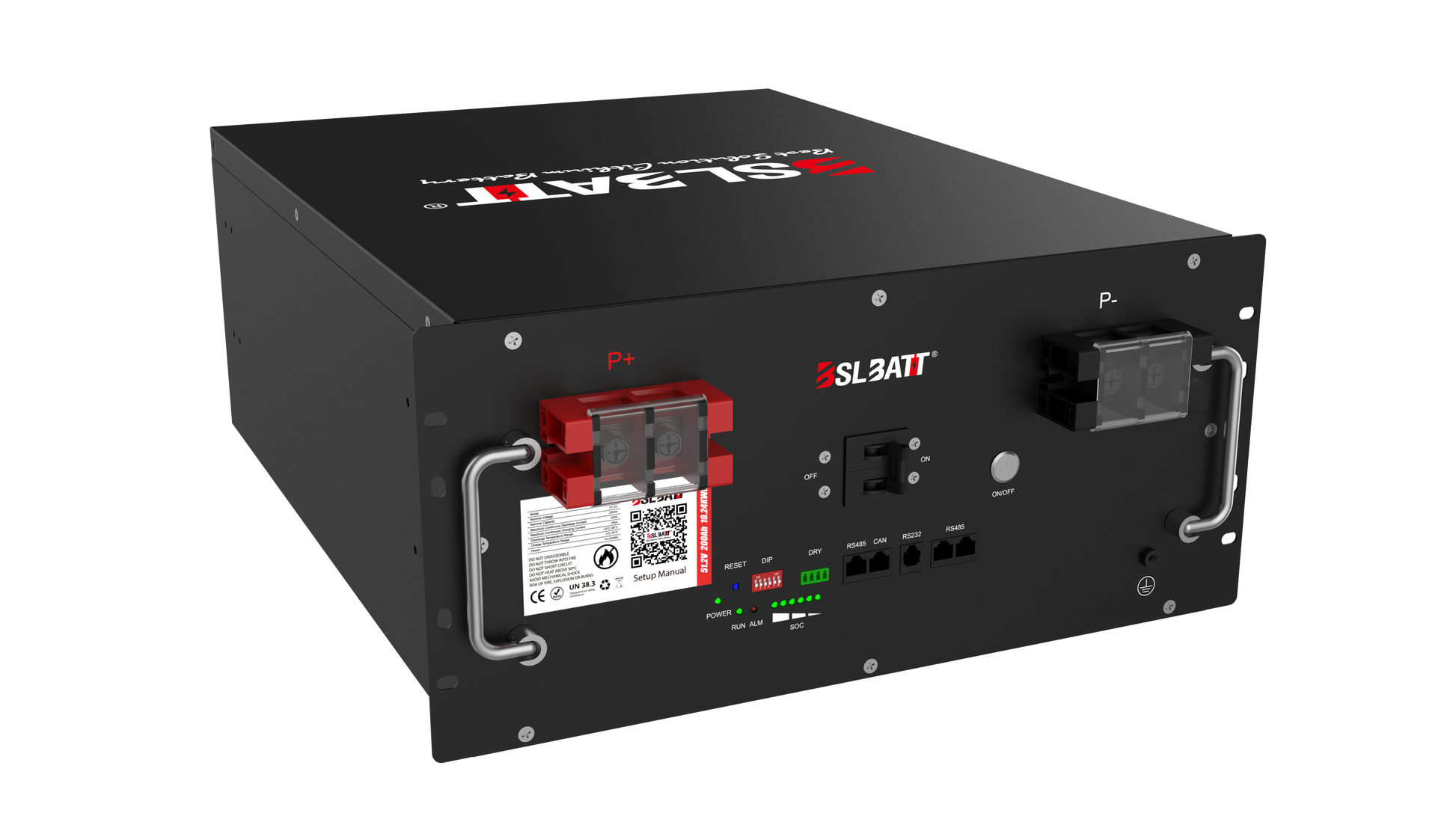

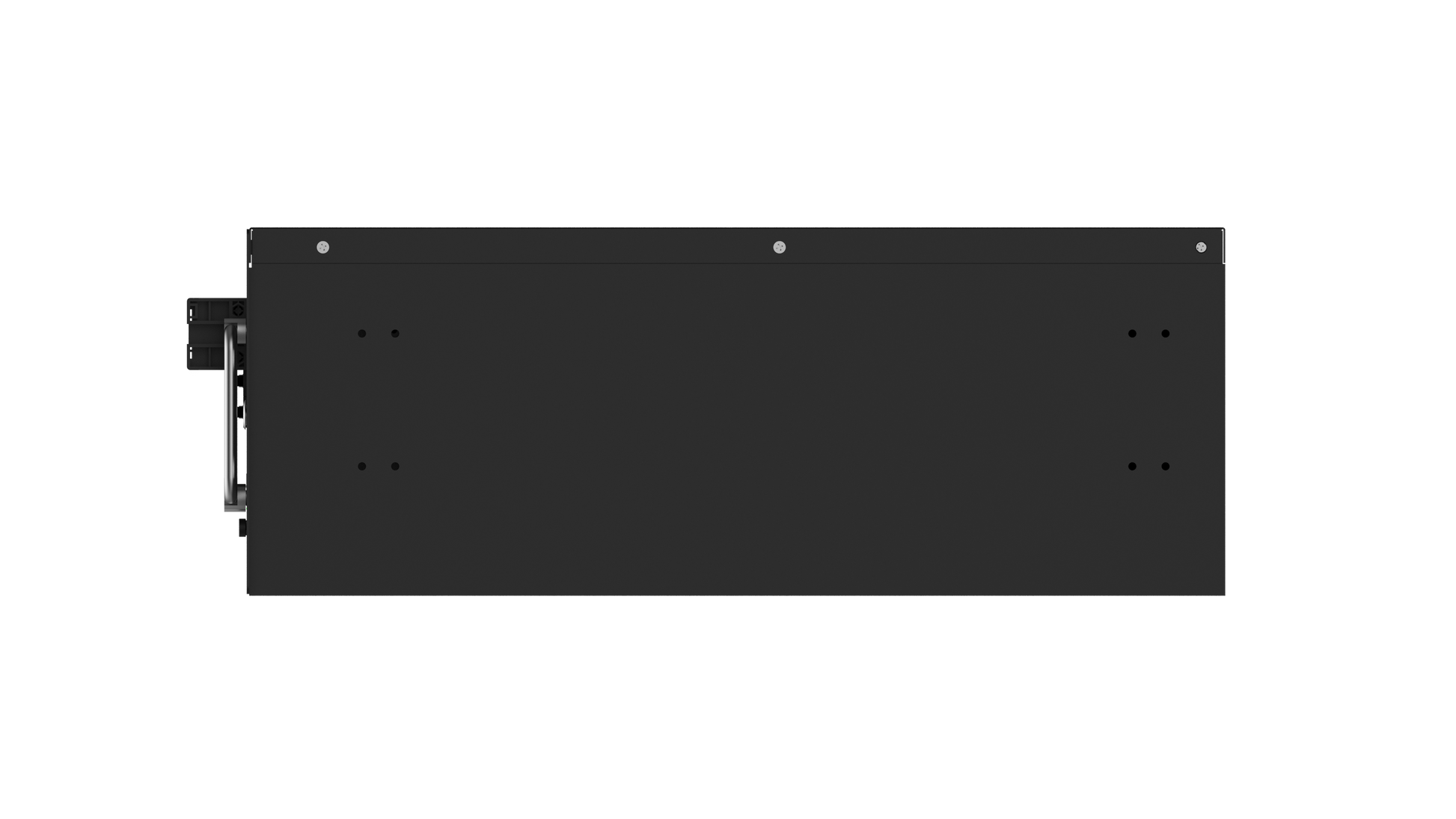

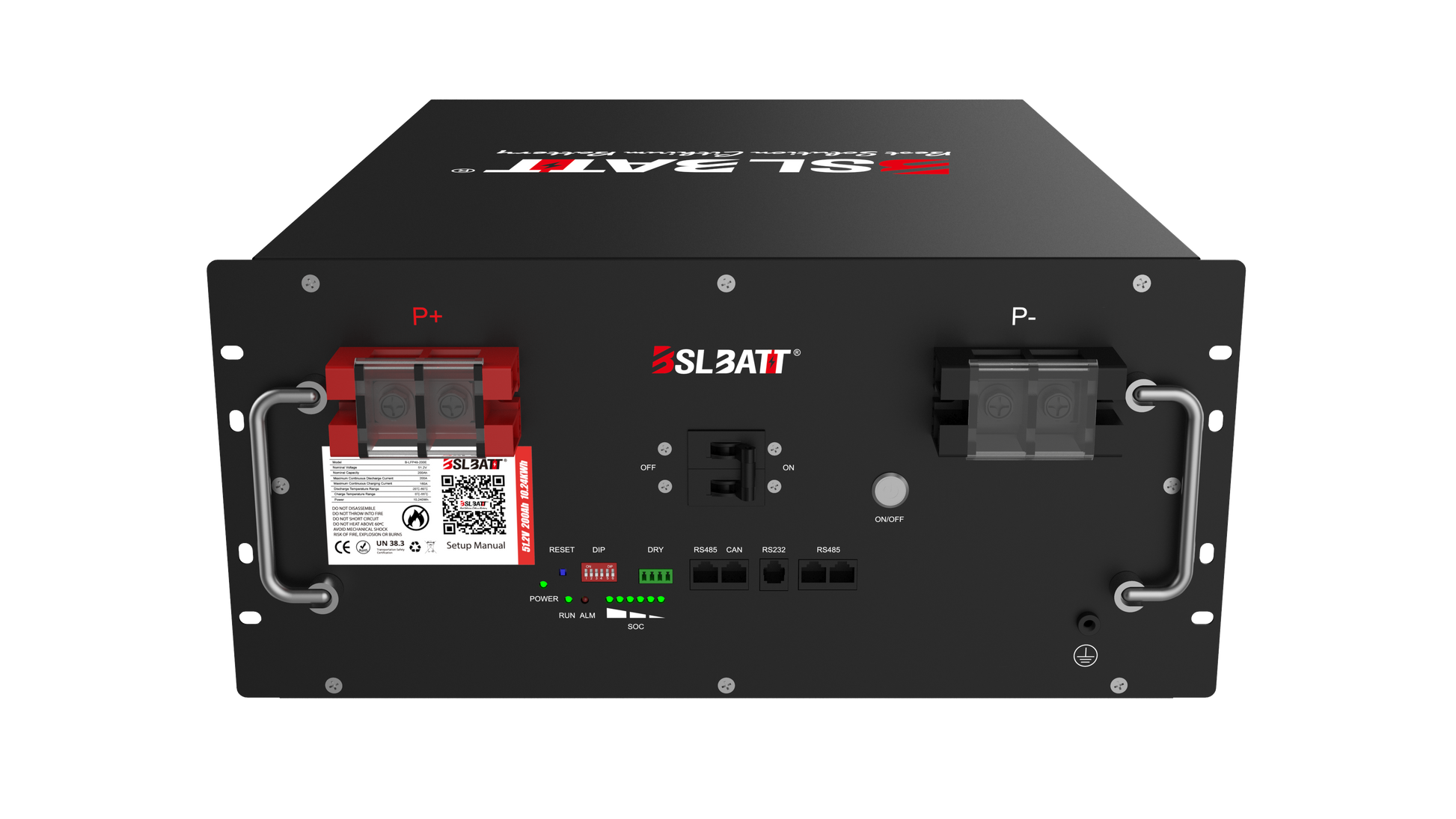

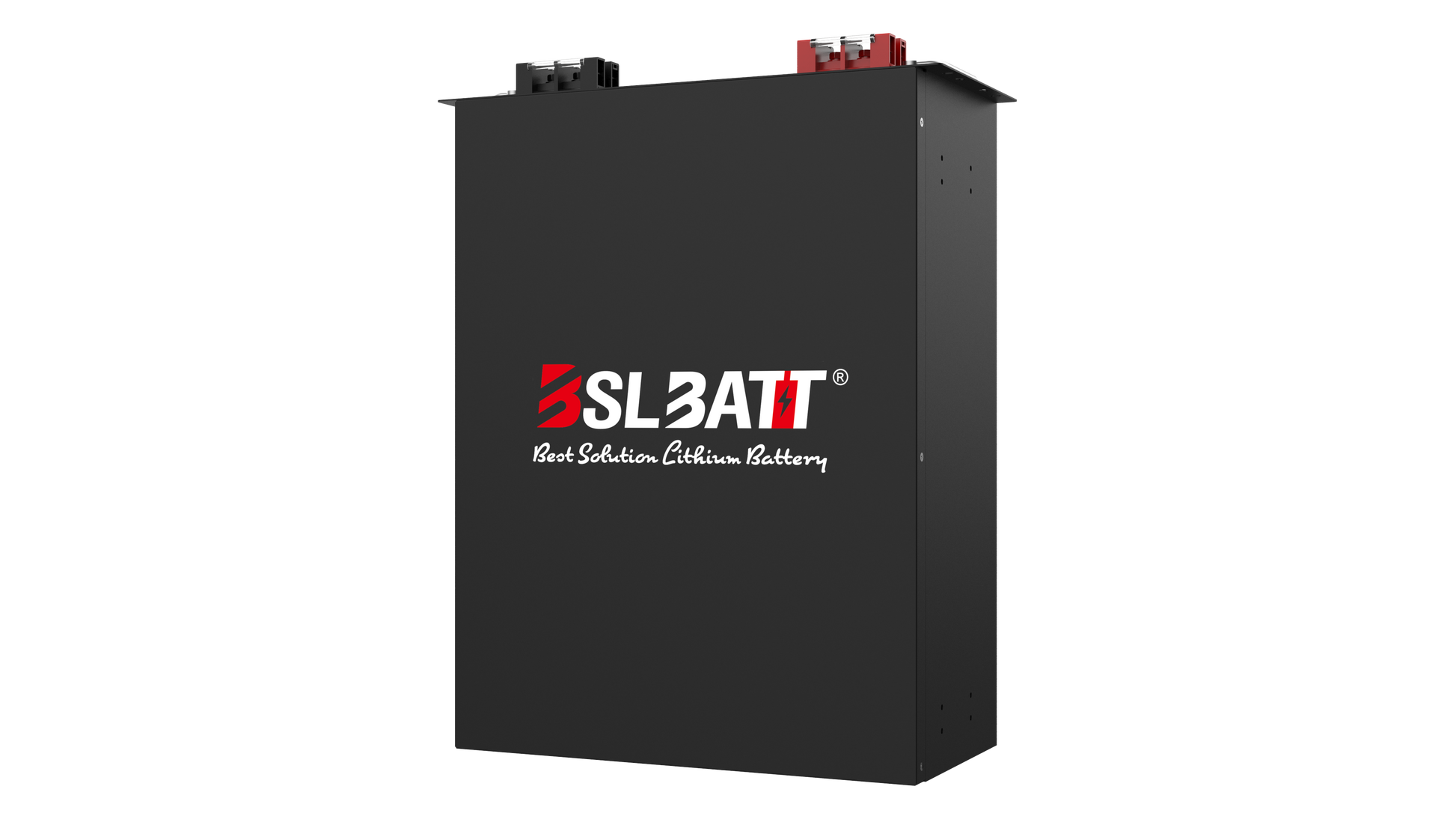

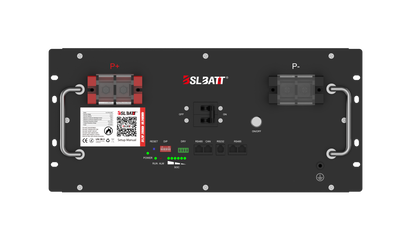

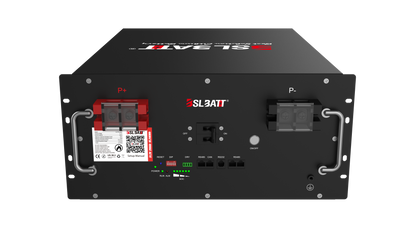

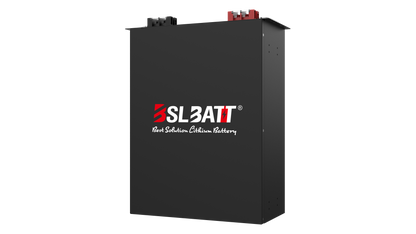

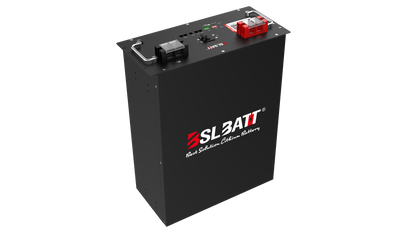

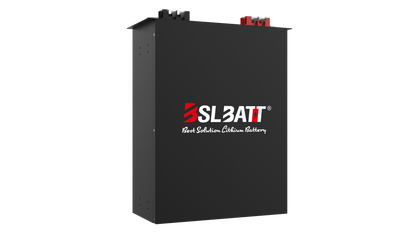

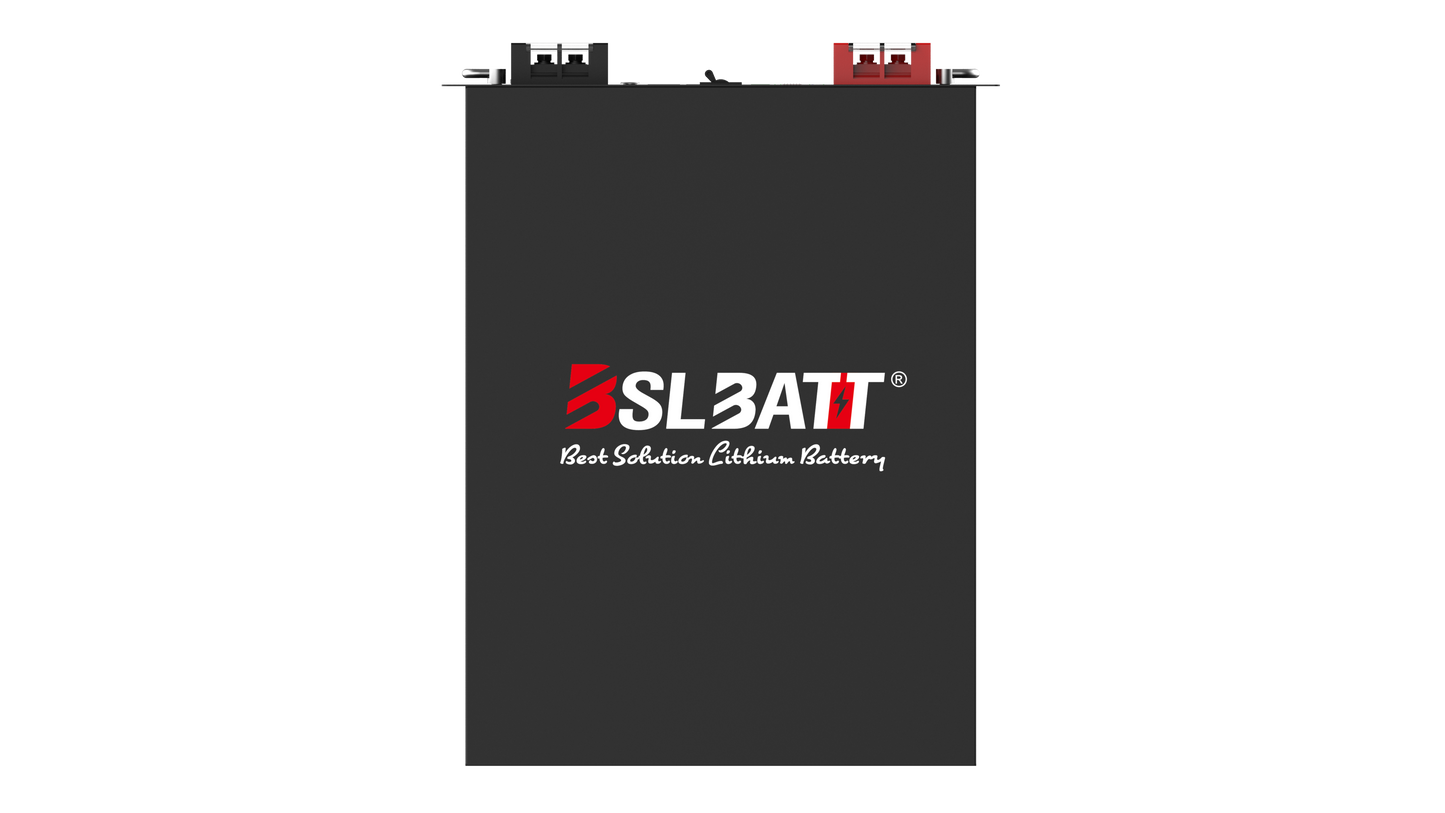

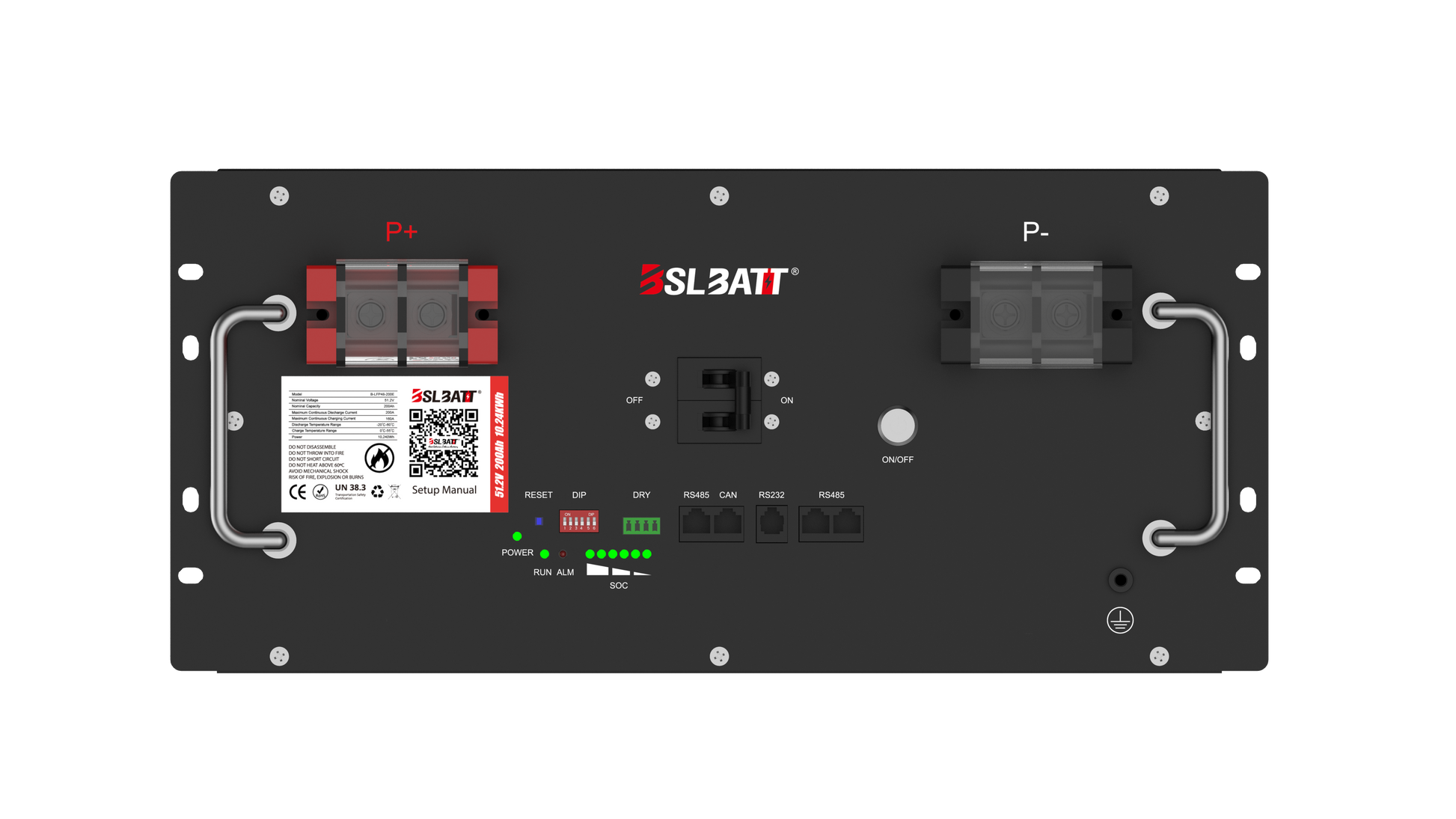

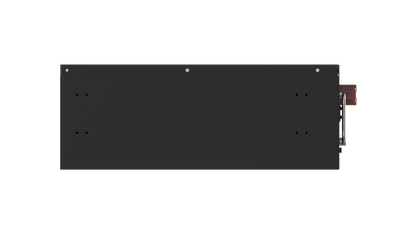

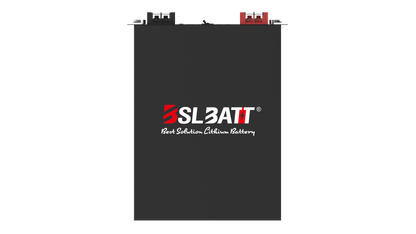

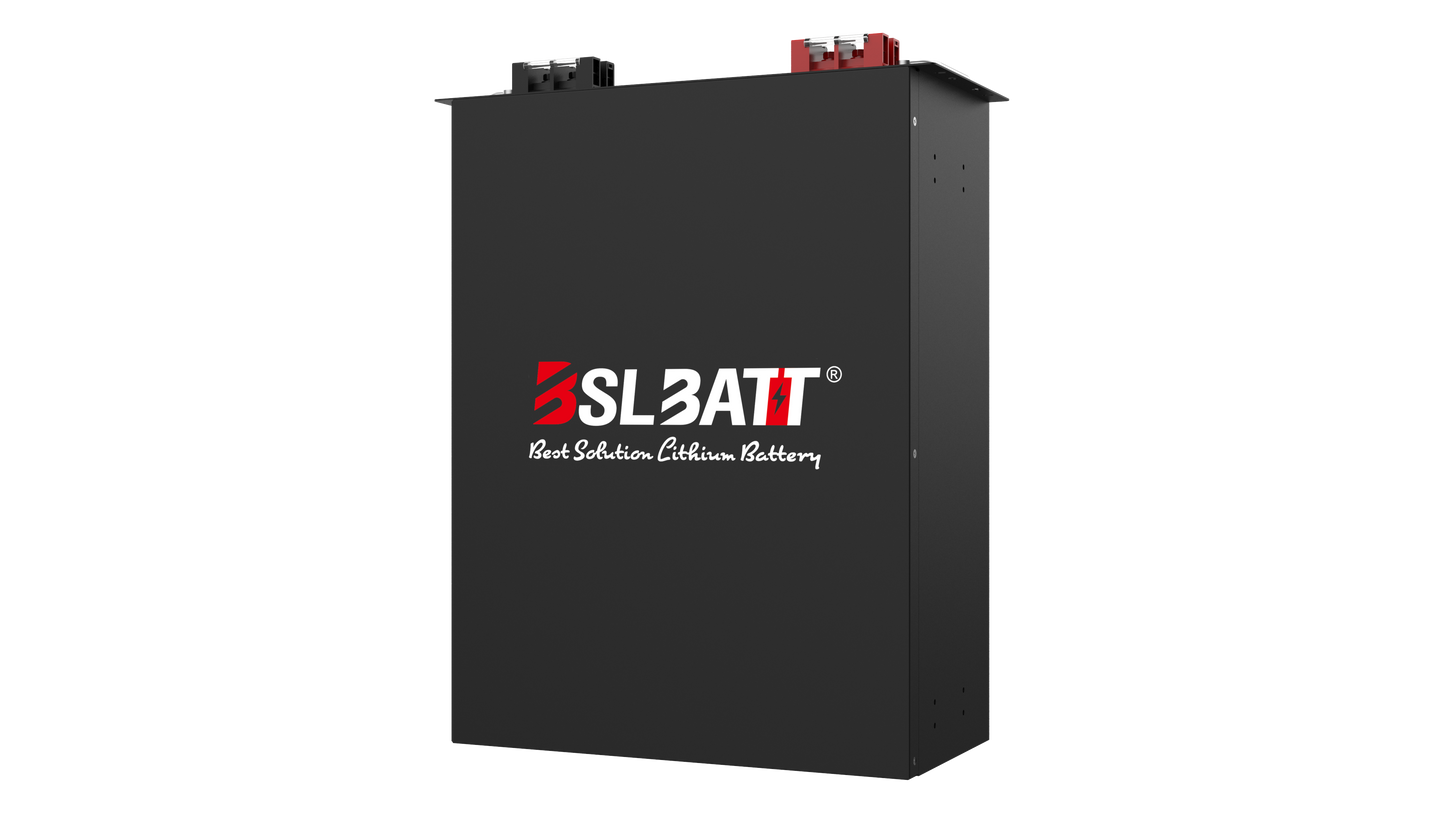

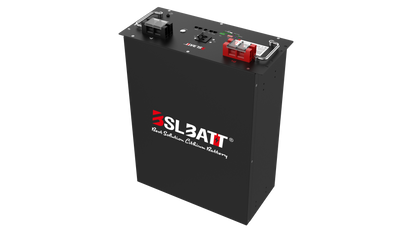

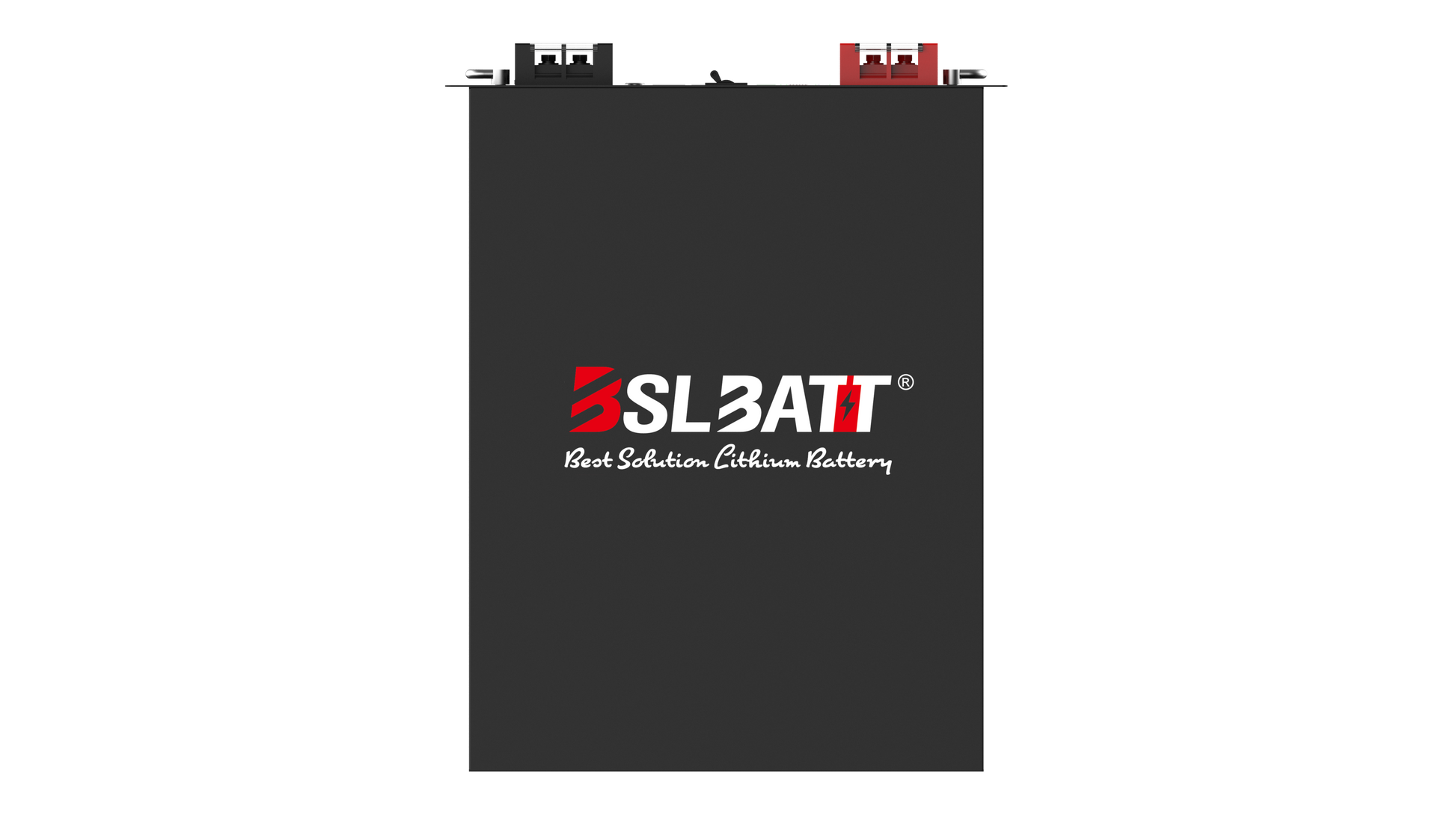

The BSLBATT B-LFP48-200E is a 51.2 V, 200Ah LiFePO4 server-rack battery with 10.24 kWh energy storage. Designed for demanding home, commercial, and industrial applications, this battery offers outstanding cycle life (>6,000 cycles), a long design life, high safety standards, and flexible expansion.
Key Features
-
High-Capacity: 10.24 kWh at 51.2 V ‒ ideal for large backup loads, off-grid systems, telecom, hybrid solar, or UPS.
-
Long Life & Robust Performance: Over 6,000 cycles at 25 °C; expected design life of 15+ years.
-
Expandability & Modularity: Can be paralleled up to 63 modules for very large storage systems.
-
Safety & Certifications: LiFePO4 chemistry (non-cobalt), certified to CE, IEC 62619, UN38.3.
-
Built for Monitoring: Includes WiFi/Bluetooth/remote app-based monitoring features.
-
Designed for Use: Continuous discharge at 1C, rack-mount form, robust design for both off-grid and grid-tied systems.
Technical Specifications
| Specification | Details |
|---|---|
| Model | B-LFP48-200E |
| Nominal Voltage | 51.2 V |
| Nominal Capacity | 200 Ah |
| Energy Capacity | 10.24 kWh |
| Cell Configuration | 16S2P |
| Dimensions | 590 × 483(442) × 222 mm |
| Weight | ~95 kg |
| Cycle Life | > 6,000 cycles at 25 °C |
| Design Life | > 15 years |
| Protection / Safety Level | IP20 |
| Parallel Capacity | Up to 63 units in parallel |
| Warranty | 10 years |
