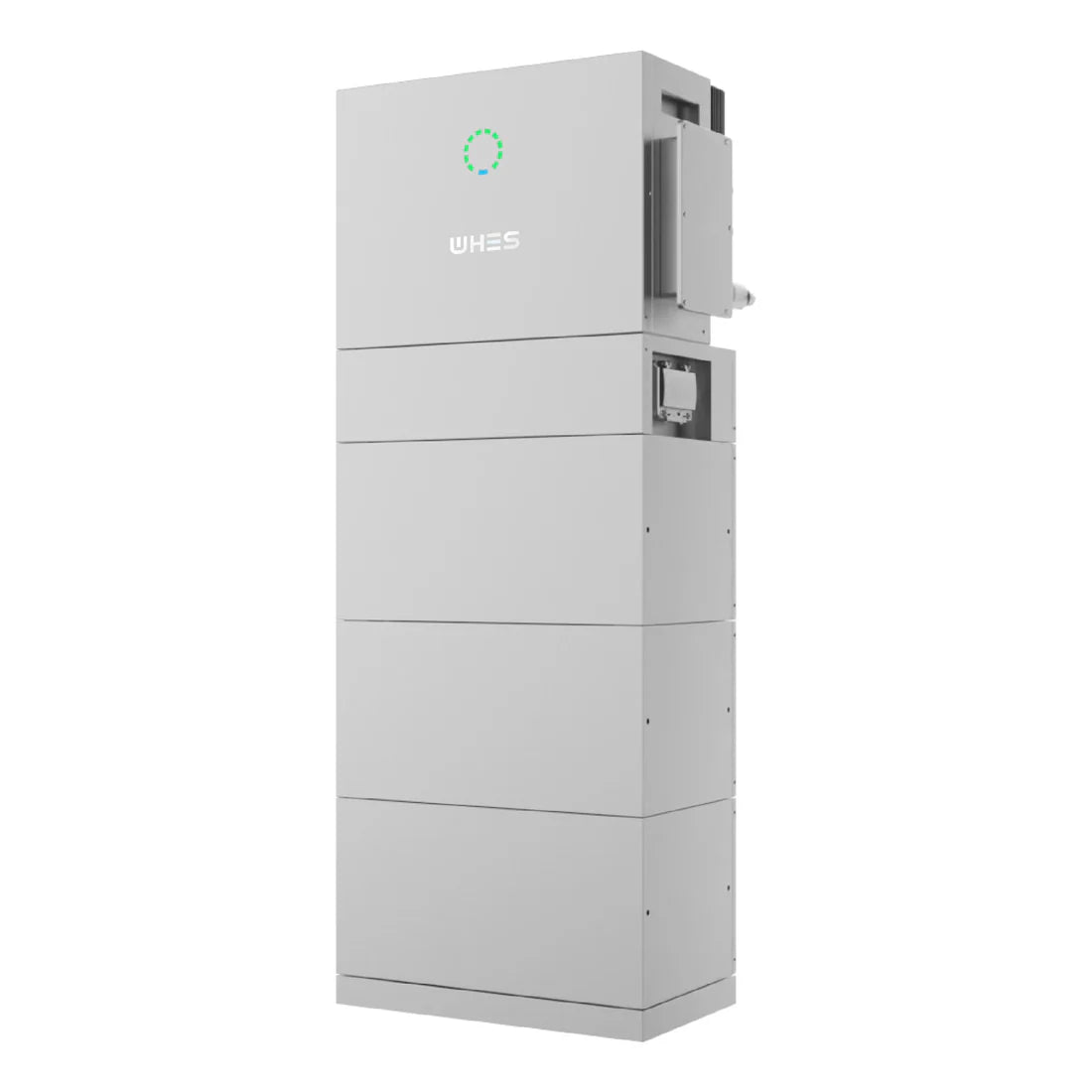

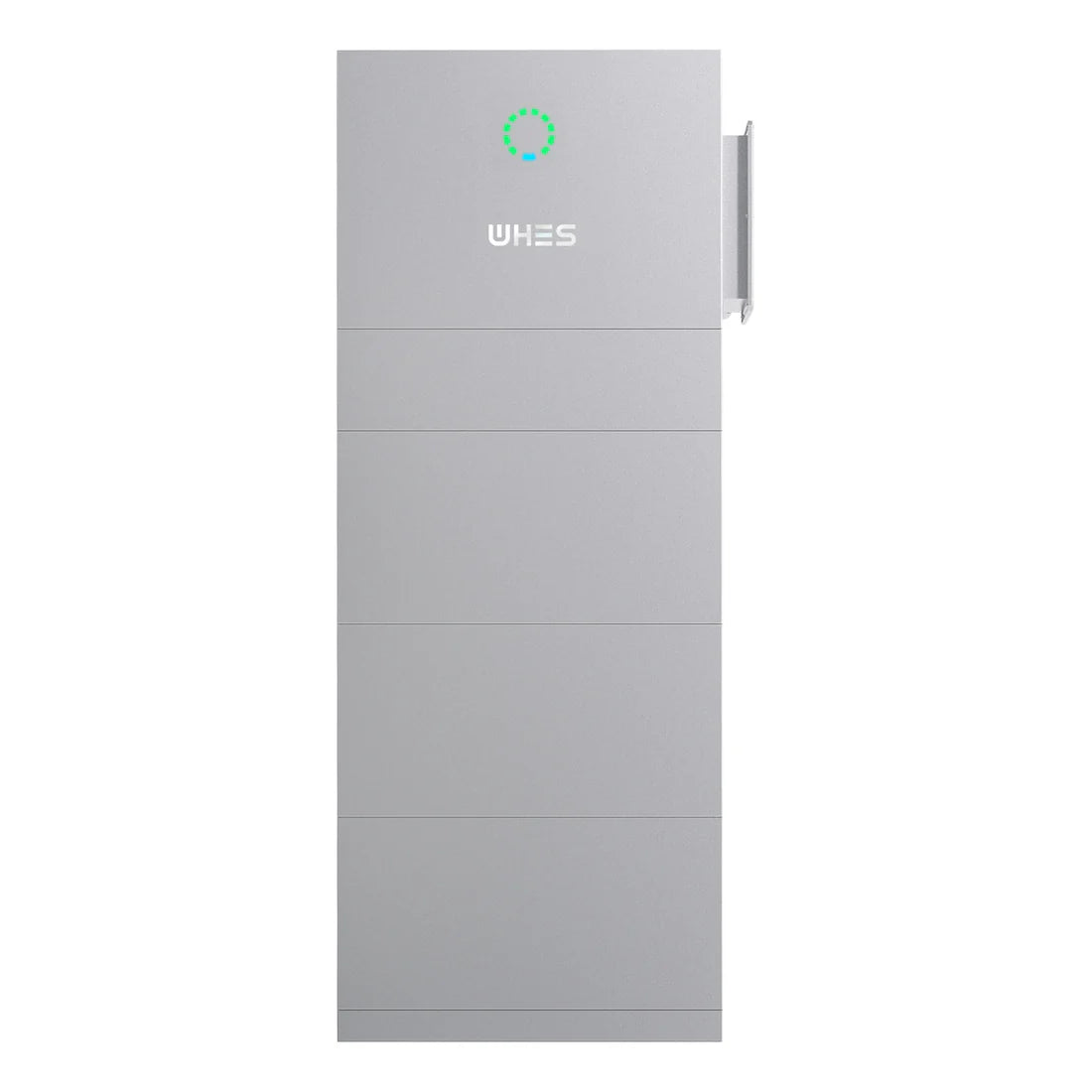

eCactus PowerPod Agave-TH Ultra 12kW Inverter & 20kWh Battery system (3-Phase)

eCactus PowerPod Agave-TH Ultra 12kW Inverter & 20kWh Battery system (3-Phase)

$12,000.00 NZD
$12,000.00 NZD
Sale Sold out

Please email us for trade pricing: sales@wholesale-solar.co.nz

Overview

eCactus PowerPod AGAVE-SH Ultra (6 kW + 15-19.9 kWh) is an all-in-one home energy storage system that combines a high-efficiency single-phase inverter with modular LiFePO4 batteries. Designed for homes needing strong output and scalable storage, it delivers reliable backup power, solar shifting, and cold-climate readiness.

Key Features

  • Integrated Design: Inverter and batteries in one streamlined system.
  • Output: 6,000 W continuous at 230 V single-phase.
  • Storage: 3 × 4.99 kWh modules included (≈15 kWh); expandable to 4 modules (≈19.9 kWh).
  • UPS-Grade Backup: <10 ms switchover during outages.
  • Fast Charge/Discharge: 50 A current capacity.
  • Optional Heating: Battery heaters enable operation down to −20 °C.
  • Certified Safety: Multi-layer protection incl. BMS, AFCI, UL9540A, IEC, and AS/NZS standards.
  • Quiet: ≤25 dB—suitable for indoor installs.

Technical Specifications

PV Input Max 12,000 W; 600 V; MPPT range 50-560 V; Max 32 A (2 × 16 A)
Battery LiFePO4; 4.99 kWh per module; 3 included; expandable to 4; 80-500 V; 50 A charge/discharge
AC Output 6,000 W / 6,000 VA; 230 V; ~26.1 A; 50/60 Hz
EPS / Backup 6,000 W; Surge: 2× rated; Transfer time <10 ms
Efficiency Inverter up to 98 %; PV→Battery ~98.5 %
Dimensions / Weight Inverter: 600 × 750 × 380 mm (~27.4 kg); Battery: 600 × 570 × 380 mm (~57 kg each)
Safety DC isolation, surge protection, AFCI, integrated BMS
Certifications IEC/EN 62109, UN38.3, UL9540A, IEC 62619, CE, EMC, CAN/RESI, AS/NZS

Applications

  • Store solar energy for evening and peak use
  • Seamless backup power for essential loads
  • Expandable home energy independence

What’s Included

  • 6 kW PowerPod AGAVE-SH Ultra inverter module
  • 3 × LiFePO4 battery modules (≈15 kWh), expandable to 4 (≈19.9 kWh)
  • Integrated Battery Management System (BMS)
  • Installation and safety manuals

Installer Notes (NZ / AU)

  • Separate essential vs non-essential circuits for backup.
  • Ensure structural support for heavy stacked modules.
  • Commission with BMS setup, SOC calibration, and EPS test.
  • Comply with AS/NZS standards and DNSP requirements.
