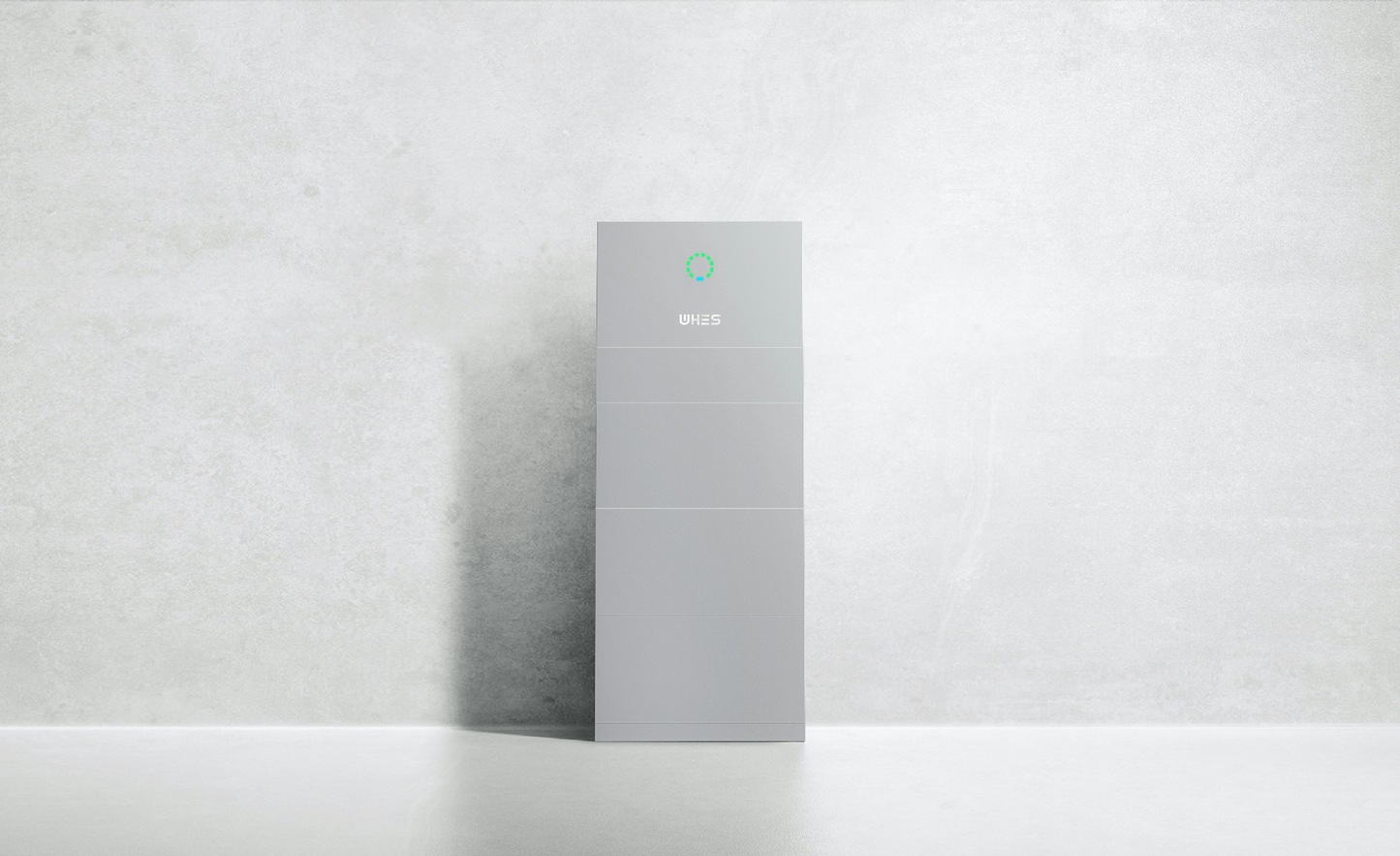

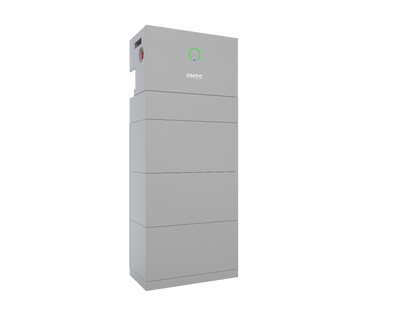

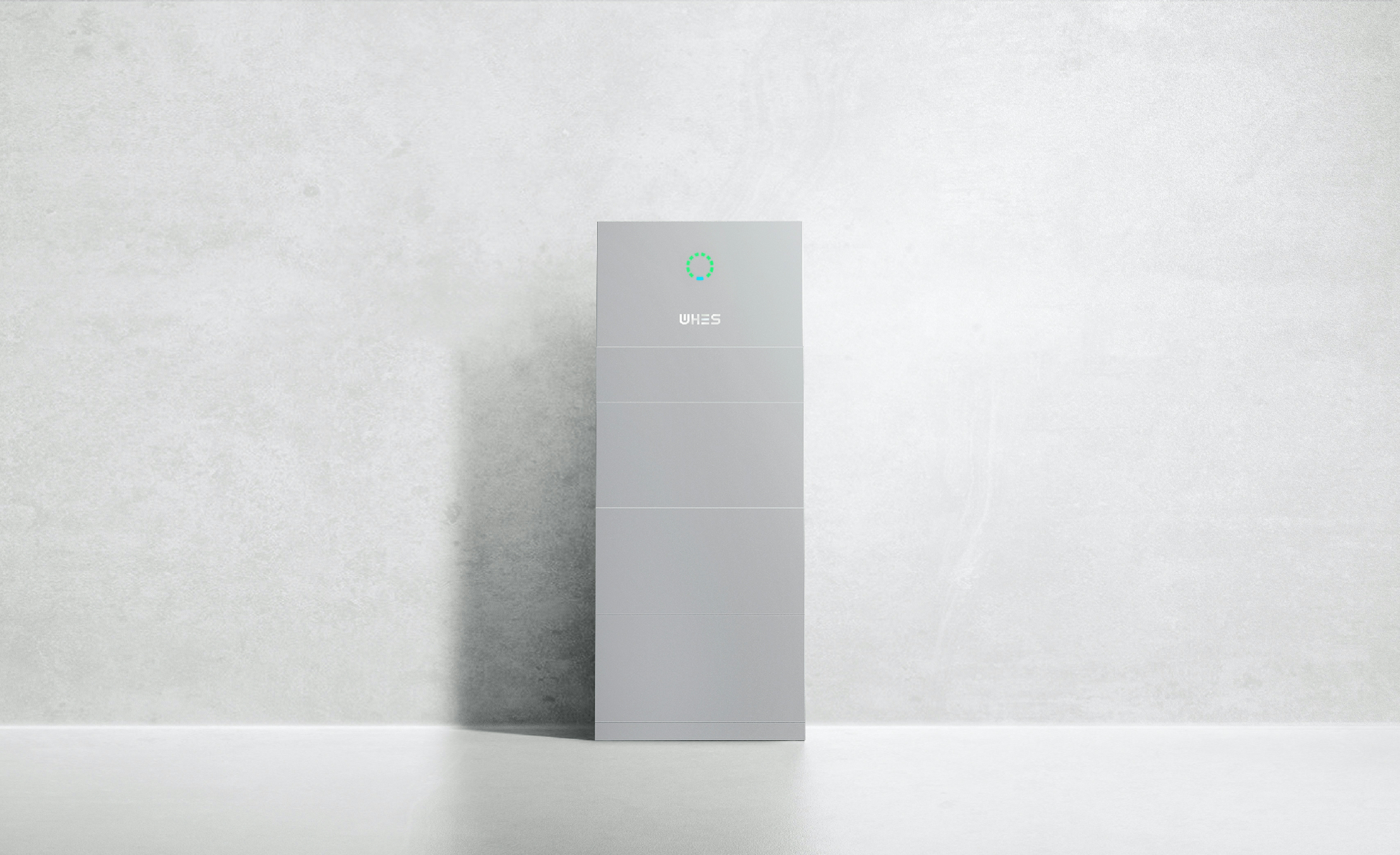

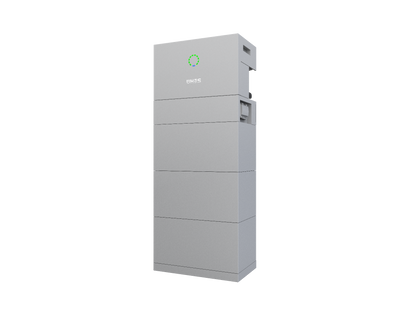

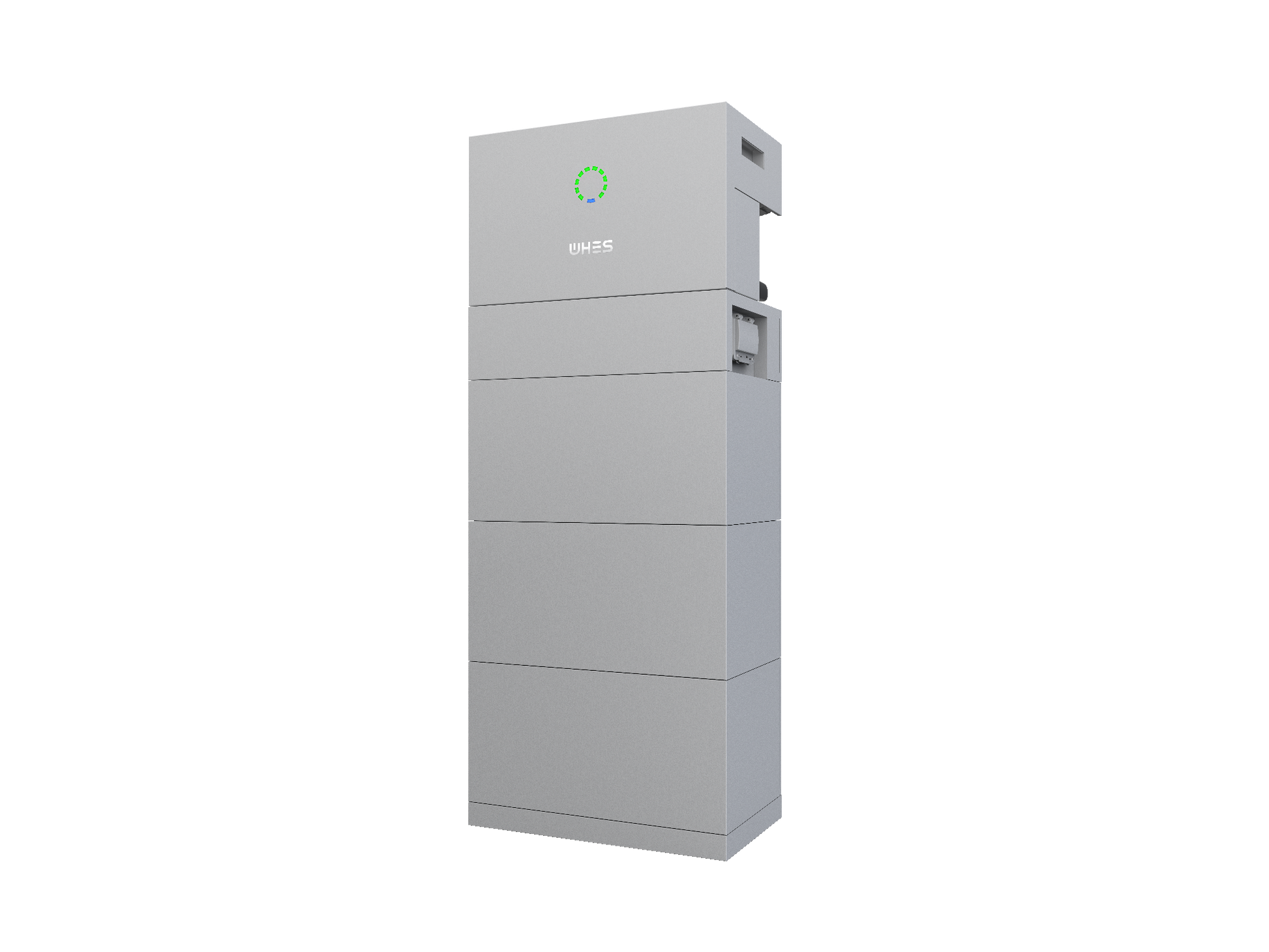

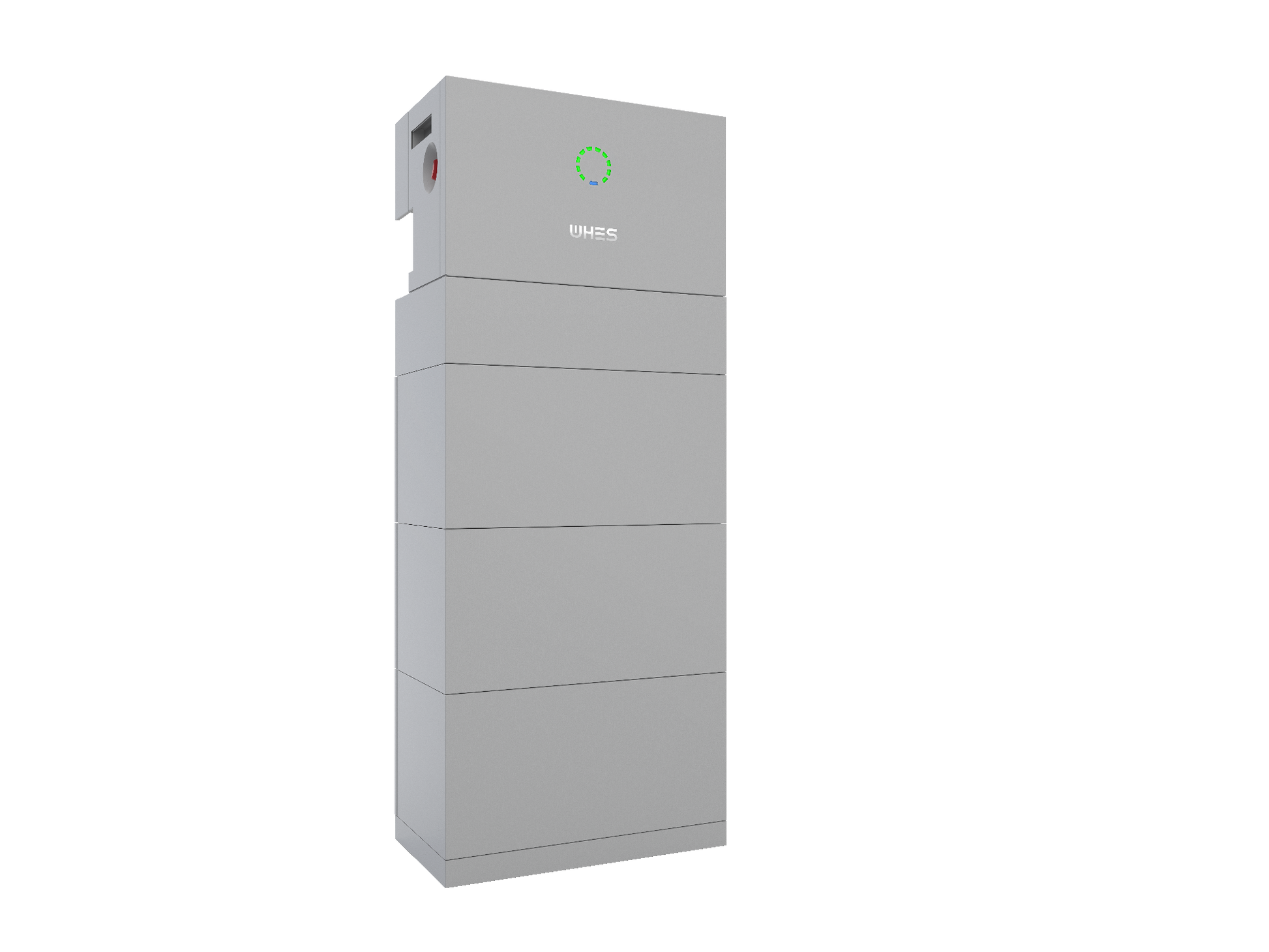

eCactus PowerPod Agave-SH Ultra 6kW Inverter & 15kWh Battery system
eCactus PowerPod Agave-SH Ultra 6kW Inverter & 15kWh Battery system
Regular price
$14,500.00 NZD
Regular price
Sale price
$14,500.00 NZD
Unit price
/
per
Please email us for trade pricing: sales@wholesale-solar.co.nz
Couldn't load pickup availability
Overview
eCactus PowerPod AGAVE-SH Ultra (6 kW + ~15-19.9 kWh) is an all-in-one home energy storage system combining a high-efficiency single-phase inverter with modular LiFePO4 battery units. Designed for homes needing a balance of power output and storage capacity, with backup, solar shifting, and optional cold-climate operation.
Key Features
- Integrated System: Inverter + battery modules combined, simplifying installation (~75% faster).
- Strong Output: 6,000 W continuous single-phase 230 V power.
- Scalable Storage: 3 battery modules (≈ 15 kWh) included; expandable up to 4 modules (~19.9 kWh).
- Fast Charge/Discharge: 50 A current to meet dynamic power demands.
- UPS-Level Backup: Transfer time < 10 ms during outages keeping essential loads powered.
- Cold Weather Ready: Optional battery heating allows operation down to −20 °C.
- Safety & Certifications: Multi-layer protection (DC isolation, surge protection, integrated BMS, AFCI), UL9540A and relevant IEC / AS/NZS standards.
- Quiet Operation: <25 dB—ideal for indoor use in garages or utility spaces.
Technical Specifications (6 kW Model)
| PV Input (DC) | Max input power: 12,000 W; Max voltage: 600 V; MPPT range: 50-560 V; Max current: 32 A (2 × 16 A strings) |
|---|---|
| Battery | LiFePO4; ~4.99 kWh per module; Included: 3 modules (≈ 15 kWh); Expandable up to 4 modules (~19.9 kWh); Voltage range: 80-500 V; Charge/discharge current: 50 A |
| AC Output (Inverter) | Rated output: 6,000 W; Apparent power: 6,000 VA; Output voltage: 230 V; Output current: approx. 26.1 A; Frequency: 50/60 Hz |
| EPS / Backup Output | Rated: 6,000 W; Surge capacity: 2× rated; Response time: < 10 ms |
| Efficiency | Max inverter efficiency: ~98 %; PV → Battery efficiency: ~98.5 % |
| Dimensions & Weight | Inverter module: 600 × 750 × 380 mm (~27.4 kg); Battery module: 600 × 570 × 380 mm (~57 kg per module) |
| Protection | DC isolation, surge protection, AFCI, integrated BMS |
| Certifications | IEC/EN 62109, UN38.3, UL9540A, IEC 62619, CE, EMC, CAN/RESI, AS/NZS standards |
Applications
- Residential solar + storage: shift daytime solar to evening use, reduce peak loads
- Backup power: protect key circuits during outages with near-instant EPS switching
- Expandable energy independence: start with ~15 kWh and scale up to ~19.9 kWh as needed
What’s Included
- PowerPod AGAVE-SH Ultra inverter module (6 kW)
- Three LiFePO4 battery modules (~4.99 kWh each) for ~15 kWh total storage; expandable with a fourth module (~19.9 kWh)
- Integrated Battery Management System (BMS)
- Installation and safety manual/documentation
Installer Notes (NZ / AU)
- Ensure essential vs non-essential loads are clearly identified for backup/UPS fallback.
- Observe manufacturer mounting/housing guidance: battery modules are heavy—mount securely.
- Commission properly: battery heating (if used), BMS setup, State-of-Charge calibration, and EPS (backup) switching test to confirm < 10 ms response.
- Check local regulatory compliance: relevant AS/NZS standards, DNSP / network utility requirements.
